Workflow Entry: Compare two genomes for similarity

Created at: 17/03/10 @ 11:01:09 Last updated: 17/03/10 @ 11:05:00

Version 4 (latest) (of 4)

Version created on: 17/03/10 @ 11:01:09 by: Gregg Iceton | Revision comments Expand

Last edited on: 17/03/10 @ 11:05:01 by: Gregg Iceton

Title: Compare two genomes for similarity

Type: Taverna 2

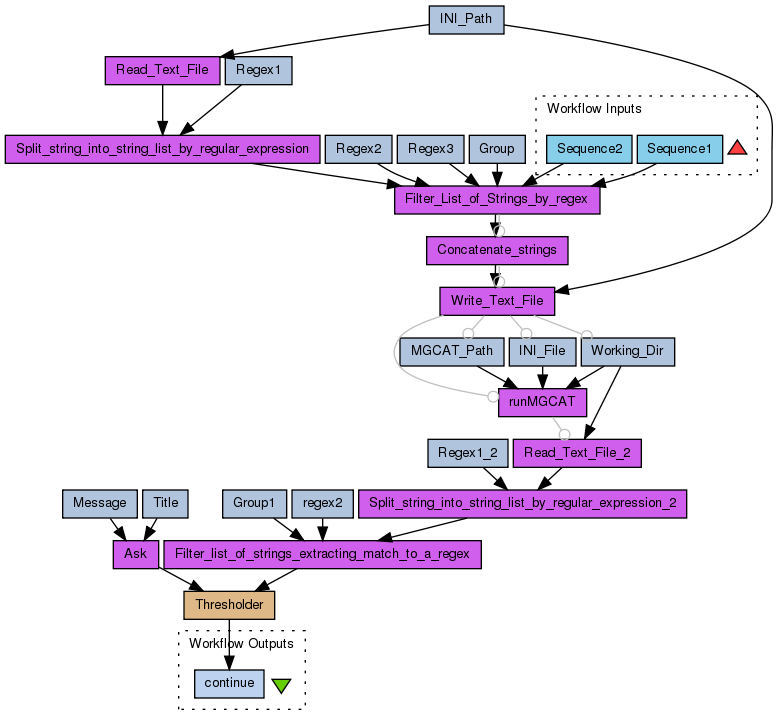

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

This workflow takes the file path to two genome nucleotide files in fasta format and requests a minimum similarity required from the user. The genomes are aligned according to the M-GCAT algorithm (http://alggen.lsi.upc.es/recerca/align/mgcat/intro-mgcat.html) and the genome similarity parsed out of the resultant log file. Output is either 0 (genome similarity less than required similarity) or 1 (genome similarity equal to or greater than the required similarity).

NB - The file paths to the sequence files MUST be provided, not the sequences themselves!

Download

Download Workflow File/Package (T2FLOW)

Download Workflow as a Galaxy tool

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/1123/download?version=4
[ More Info Expand ]

Workflow Components

Authors (0)

Titles (0)

Descriptions (0)

Inputs (2)

Name	Description
Sequence1
Sequence2

Processors (24)

Name	Type	Description
runMGCAT	localworker
MGCAT_Path	stringconstant
Working_Dir	stringconstant
Read_Text_File	localworker
Split_string_into_string_list_by_regular_expression	localworker
Regex1	stringconstant
Filter_List_of_Strings_by_regex	localworker
Regex2	stringconstant
Regex3	stringconstant
Write_Text_File	localworker
Concatenate_strings	localworker
Group	stringconstant
INI_File	stringconstant
Read_Text_File_2	localworker
Split_string_into_string_list_by_regular_expression_2	localworker
Regex1_2	stringconstant
Filter_list_of_strings_extracting_match_to_a_regex	localworker
Group1	stringconstant
regex2	stringconstant
Thresholder	beanshell
Ask	localworker
Message	stringconstant
Title	stringconstant
INI_Path	stringconstant

Beanshells (1)

Name	Description	Inputs	Outputs
Thresholder		seqSim reqSim	cont

Outputs (1)

Name	Description
continue

Datalinks (26)

Source	Sink
MGCAT_Path:value	runMGCAT:command
Working_Dir:value	runMGCAT:workingdir
INI_File:value	runMGCAT:args
INI_Path:value	Read_Text_File:fileurl
Read_Text_File:filecontents	Split_string_into_string_list_by_regular_expression:string
Regex1:value	Split_string_into_string_list_by_regular_expression:regex
Split_string_into_string_list_by_regular_expression:split	Filter_List_of_Strings_by_regex:stringlist
Regex2:value	Filter_List_of_Strings_by_regex:regex1
Regex3:value	Filter_List_of_Strings_by_regex:regex2
Sequence2	Filter_List_of_Strings_by_regex:file2
Group:value	Filter_List_of_Strings_by_regex:group
Sequence1	Filter_List_of_Strings_by_regex:file
Concatenate_strings:output	Write_Text_File:filecontents
INI_Path:value	Write_Text_File:outputFile
Filter_List_of_Strings_by_regex:filteredlist	Concatenate_strings:stringlist
Working_Dir:value	Read_Text_File_2:fileurl
Read_Text_File_2:filecontents	Split_string_into_string_list_by_regular_expression_2:string
Regex1_2:value	Split_string_into_string_list_by_regular_expression_2:regex
Split_string_into_string_list_by_regular_expression_2:split	Filter_list_of_strings_extracting_match_to_a_regex:stringlist
Group1:value	Filter_list_of_strings_extracting_match_to_a_regex:group
regex2:value	Filter_list_of_strings_extracting_match_to_a_regex:regex
Filter_list_of_strings_extracting_match_to_a_regex:filteredlist	Thresholder:seqSim
Ask:answer	Thresholder:reqSim
Message:value	Ask:message
Title:value	Ask:title
Thresholder:cont	continue

Coordinations (7)

Controller	Target
Write_Text_File	runMGCAT
runMGCAT	Read_Text_File_2
Write_Text_File	Working_Dir
Concatenate_strings	Write_Text_File
Write_Text_File	INI_File
Write_Text_File	MGCAT_Path
Filter_List_of_Strings_by_regex	Concatenate_strings
