Workflow Entry: Fetch Dragon images from BioMoby v2

Created at: 03/10/07 @ 18:35:48

Version 2 (latest) (of 2)

Version created on: 03/10/07 @ 18:35:48 by: David De Roure | Revision comments Expand

Title: Fetch Dragon images from BioMoby v2

Type: Taverna 1

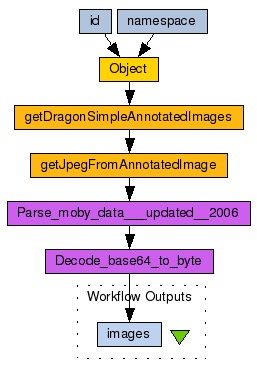

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

demonstration to ISSGC07

Download

Download Workflow File/Package (SCUFL)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Launch in Taverna

Note: you need to have both the WHIP Launcher and the Taverna myExperiment/WHIP plugin installed on your machine for this to work. See here for information.

Option 2:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/7/download?version=2
[ More Info Expand ]

Workflow Components

Inputs (0)

Processors (7)

Name	Type	Description
id	stringconstant
namespace	stringconstant
Decode_base64_to_byte	local
Parse_moby_data___updated__2006	local
getJpegFromAnnotatedImage	biomobywsdl	This service takes in an annotated jpeg image and returns just the image.
getDragonSimpleAnnotatedImages	biomobywsdl	Consumes DragonDB allele identifiers and returns a collection of images of plants homozygous for that allele
Object	biomobyobject	an object

Beanshells (0)

Outputs (1)

Name	Description
images

Links (7)

Source	Sink
Decode_base64_to_byte:bytes	images
Object:mobyData	getDragonSimpleAnnotatedImages:Object(input)
Parse_moby_data___updated__2006:value	Decode_base64_to_byte:base64
getDragonSimpleAnnotatedImages:SimpleAnnotatedJPEGImage(Collection - 'image' As Simples)	getJpegFromAnnotatedImage:SimpleAnnotatedJPEGImage(annotatedImage)
getJpegFromAnnotatedImage:b64_encoded_jpeg(image)	Parse_moby_data___updated__2006:mobydata
id:value	Object:id
namespace:value	Object:namespace
