Workflow Entry: Test SoapLab Service Availability

Created at: 29/05/09 @ 10:13:45 Last updated: 29/05/09 @ 10:14:47

Version 1 (of 1)

Version created on: 29/05/09 @ 10:13:45 by: Wassinki | Revision comments Expand

Last edited on: 29/05/09 @ 10:14:48 by: Wassinki

Title: Test SoapLab Service Availability

Type: Taverna 1

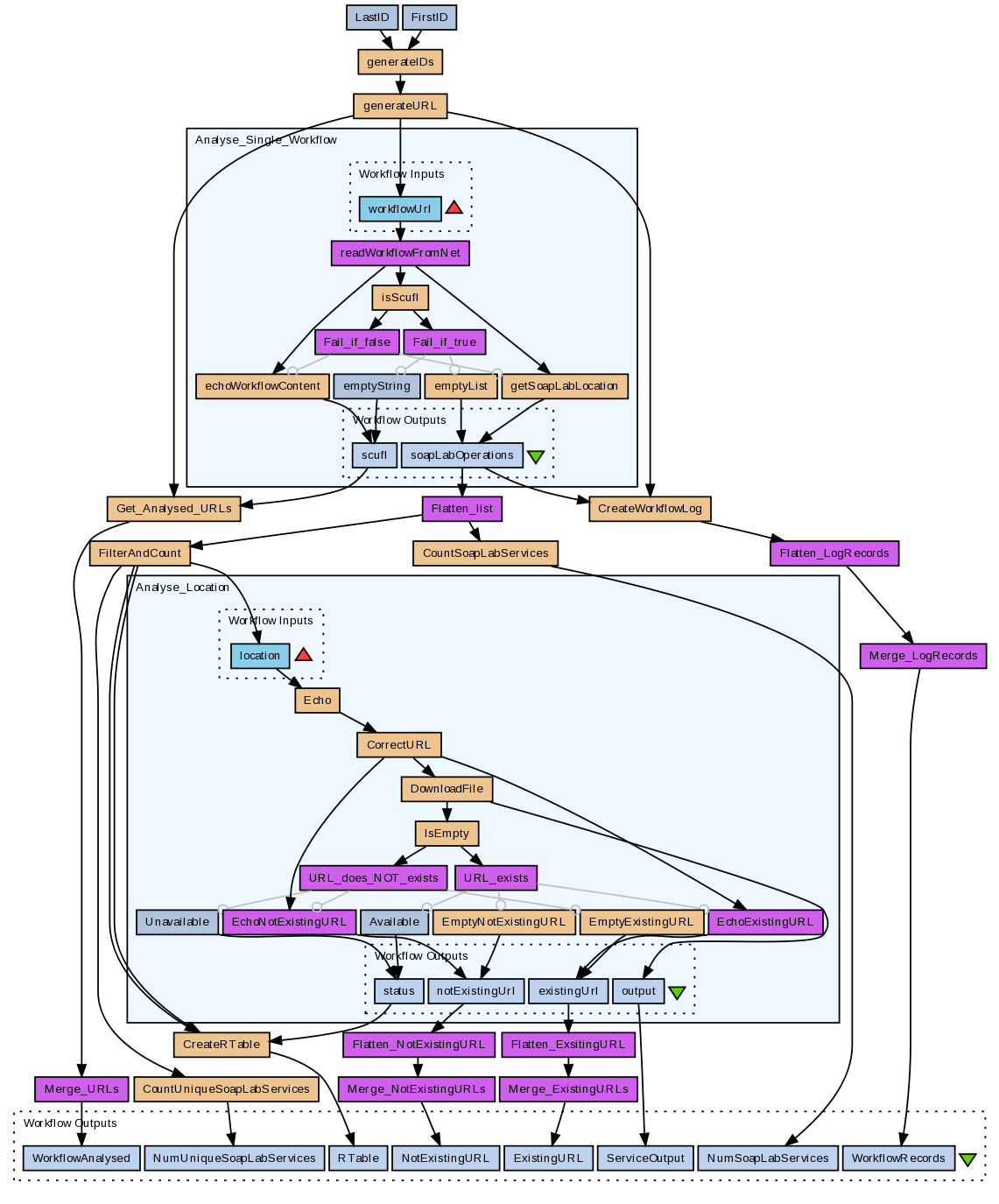

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

This workflow tests for all Taverna workflows stored at myExperiment wether theS oapLab services used still exists. For each SOAP/WSDL service it checks wether the SoapLab service can still be accessed. The output is among others a report of

accessible SoapLab services
inaccessible SoapLab services

Download

Download Workflow File/Package (SCUFL)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Launch in Taverna

Note: you need to have both the WHIP Launcher and the Taverna myExperiment/WHIP plugin installed on your machine for this to work. See here for information.

Option 2:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/773/download?version=1
[ More Info Expand ]

Workflow Components

Inputs (0)

Processors (20)

Name	Type	Description
LastID	stringconstant
Merge_LogRecords	local
Flatten_NotExistingURL	local
Merge_ExistingURLs	local
Flatten_list	local
Merge_URLs	local
Flatten_ExsitingURL	local
Flatten_LogRecords	local
FirstID	stringconstant
Merge_NotExistingURLs	local
CreateRTable	beanshell
Get_Analysed_URLs	beanshell
generateIDs	beanshell
generateURL	beanshell
CountSoapLabServices	beanshell
CreateWorkflowLog	beanshell
FilterAndCount	beanshell
CountUniqueSoapLabServices	beanshell
Analyse_Single_Workflow	workflow
Analyse_Location	workflow

Beanshells (18)

Name	Inputs	Outputs
getSoapLabLocation	xml xpath	nodes
echoWorkflowContent	input	output
emptyList		list
isScufl	input	isEmpty
DownloadFile	url	content
Echo	input	output
EmptyExistingURL		list
IsEmpty	string	isEmpty
EmptyNotExistingURL		list
CorrectURL	url	newURL
CreateRTable	locations counts states	rTable
Get_Analysed_URLs	scufl urls	analysedURLS
generateIDs	firstId lastId	workflowIDs
generateURL	id	url
CountSoapLabServices	list	size
CreateWorkflowLog	url soapLabOperations	logRecords
FilterAndCount	locations	uniqueLocations counts
CountUniqueSoapLabServices	list	size

Outputs (8)

Name	Description
NumSoapLabServices
NumUniqueSoapLabServices
ServiceOutput
NotExistingURL
ExistingURL
RTable
WorkflowAnalysed
WorkflowRecords

Links (31)

Source	Sink
Analyse_Location:existingUrl	Flatten_ExsitingURL:inputlist
Analyse_Location:notExistingUrl	Flatten_NotExistingURL:inputlist
Analyse_Location:status	CreateRTable:states
Analyse_Single_Workflow:scufl	Get_Analysed_URLs:scufl
Analyse_Single_Workflow:soapLabOperations	CreateWorkflowLog:soapLabOperations
Analyse_Single_Workflow:soapLabOperations	Flatten_list:inputlist
CreateWorkflowLog:logRecords	Flatten_LogRecords:inputlist
FilterAndCount:counts	CreateRTable:counts
FilterAndCount:uniqueLocations	Analyse_Location:location
FilterAndCount:uniqueLocations	CountUniqueSoapLabServices:list
FilterAndCount:uniqueLocations	CreateRTable:locations
FirstID:value	generateIDs:firstId
Flatten_LogRecords:outputlist	Merge_LogRecords:stringlist
Analyse_Location:output	ServiceOutput
CountSoapLabServices:size	NumSoapLabServices
CountUniqueSoapLabServices:size	NumUniqueSoapLabServices
CreateRTable:rTable	RTable
Flatten_ExsitingURL:outputlist	Merge_ExistingURLs:stringlist
Flatten_NotExistingURL:outputlist	Merge_NotExistingURLs:stringlist
Flatten_list:outputlist	CountSoapLabServices:list
Flatten_list:outputlist	FilterAndCount:locations
Get_Analysed_URLs:analysedURLS	Merge_URLs:stringlist
LastID:value	generateIDs:lastId
Merge_LogRecords:concatenated	WorkflowRecords
Merge_URLs:concatenated	WorkflowAnalysed
generateIDs:workflowIDs	generateURL:id
generateURL:url	Analyse_Single_Workflow:workflowUrl
generateURL:url	CreateWorkflowLog:url
generateURL:url	Get_Analysed_URLs:urls
Merge_ExistingURLs:concatenated	ExistingURL
Merge_NotExistingURLs:concatenated	NotExistingURL
