Mouse Brain Image Analysis: General Linear Modeling (GML) Pipeline

Created: 2011-04-06 01:52:56      Last updated: 2011-04-06 01:53:01

Overview - General Linear Model

The workflow runs voxelwise statistics on two populations of mice. Each of the populations has been scanned prior to injection of a label and at four subsequent timepoints.


Problem addressed by this workflow

The workflow addresses several problems. First of all, it performs co-registration between the subjects from the two populations and at different timepoints. It then scales all images. Finally, it runs a multiple linear regression module to produce p-values and t-statistics for the two variables, namely cohort and time after injection.


Detailed Workflow Usage & Specifications

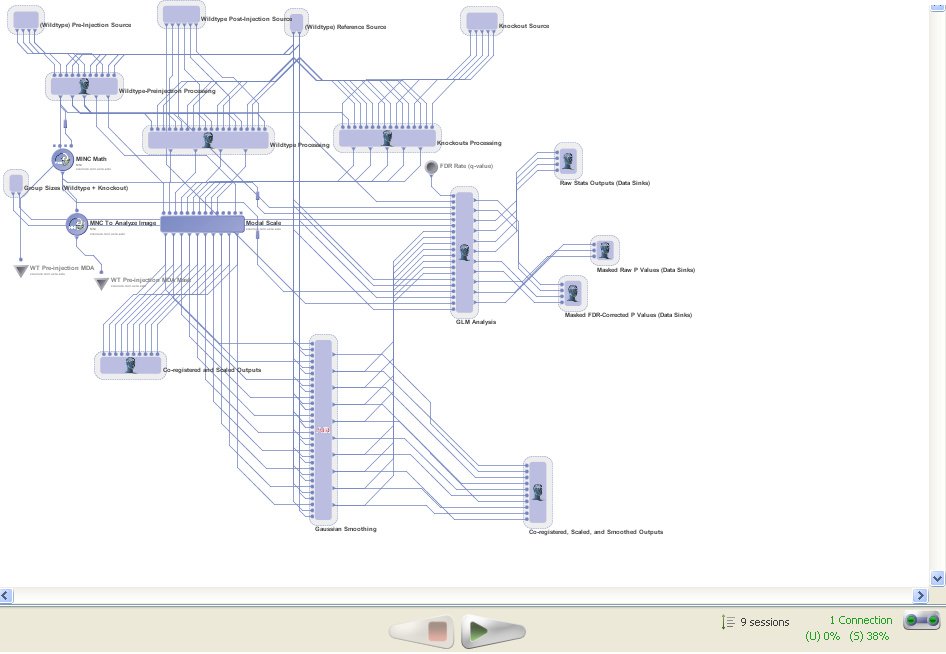

Data sources are grouped into the following five module groups: (Wildtype) Pre-Injection Source Wildtype Post-Injection Source (Wildtype) Reference Source Knockout Source Group Sizes (Wildtype + Knockout)

The following briefly describes the protocol:

Wildtype-Preinjection Processing - Using a mouse template as a reference, an MDA is computed from the wildtype pre-injection images; each wildtype pre-injection image is then non-linearly registered to the MDA

Wildtype Processing - The post-injection volumes are registered to the pre-injection volumes, then the transformation matrices generated in the previous step are applied to put all wild-type brains into MDA space

Knockouts Processing - The knockout pre-injection volumes are non-linearly registered to the wildtype pre-injection MDA; then, as in the 'Wildtype Processing' step, the knockout post-injection brains are non-linearly registered to the knockout pre-injection brains and the transformation matrices generated in the previous step are applied to put all knockout brains into MDA space

All co-registered volumes are then scaled, smoothed, and fed into the Multiple Linear Regression module.
