Sample IMPACT hackathon workflow

Created: 2011-11-14 16:12:10 Last updated: 2012-06-19 10:28:42

Download Workflow

Workflow that implements the Use Case for Group 2 at the IMPACT/Taverna hackathon.

What it does is to take the URL of a TIFF image and compute the Levenshtein difference between the OCR output of the uncompressed version with various ones compressed at various bit rates.

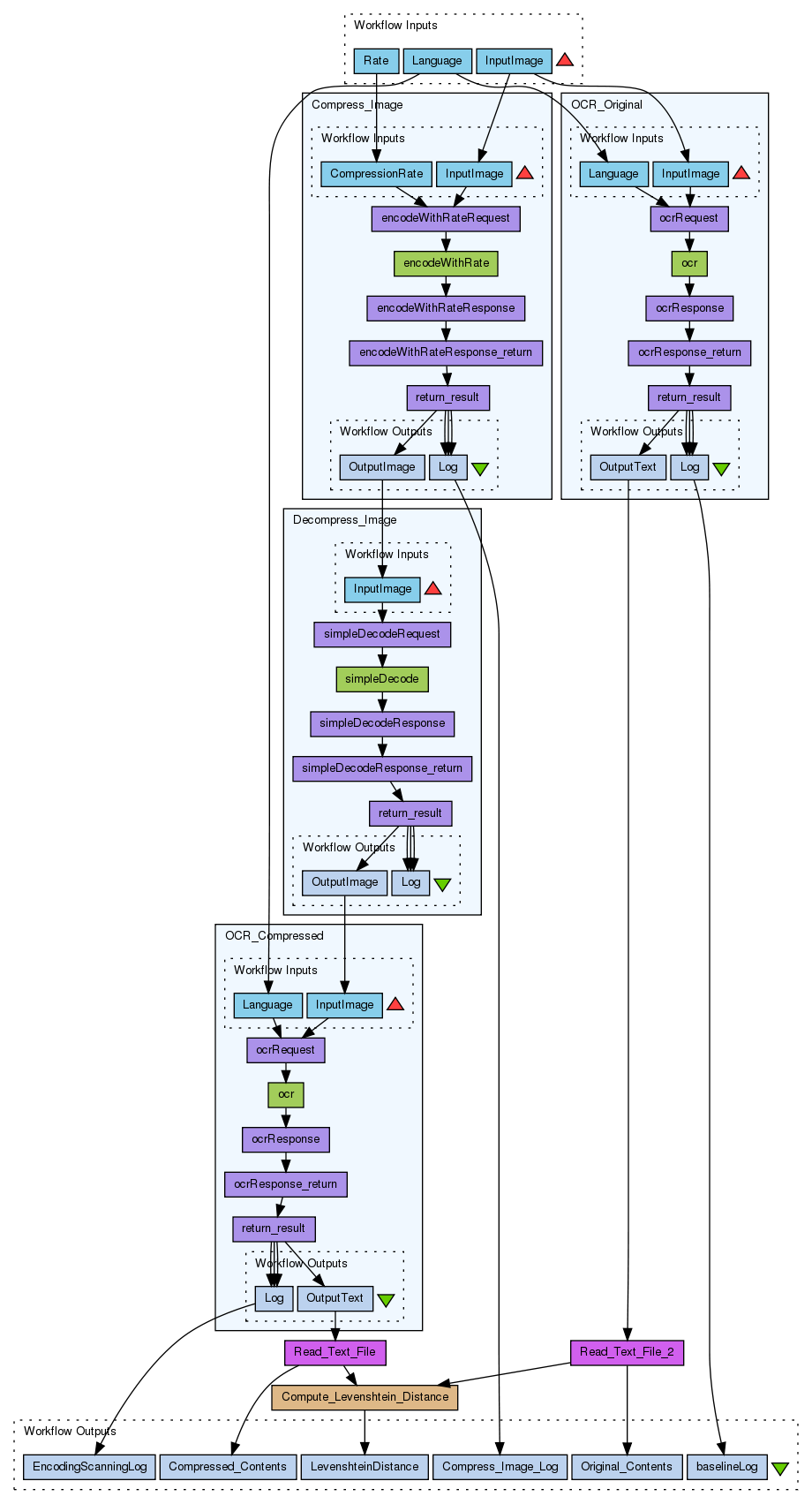

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/2559/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (2)

Descriptions (1)

Dependencies (0)

Inputs (3)

Name	Description
InputImage	The URL of the input image. The URL of the input image, as a _string_.
Rate	Number of bits per pixel to use for compression
Language	Language module to use with OCR engine (greatly improves the error rate across all bit-rates).

Processors (7)

Name	Type	Description
Compute_Levenshtein_Distance	beanshell	Script int n = baseline.length(); int m = compressed.length(); if (n == 0) { distance = m; } else if (m == 0) { distance = n; } else { int[] p = new int[n+1]; int[] d = new int[n+1]; int[] _d; int i; int j; char t_j; int cost; for (i = 0; i<=n; i++) { p[i] = i; } for (j = 1; j<=m; j++) { t_j = compressed.charAt(j-1); d[0] = j; for (i=1; i<=n; i++) { cost = baseline.charAt(i-1)==t_j ? 0 : 1; d[i] = Math.min(Math.min(d[i-1]+1, p[i]+1), p[i-1]+cost); } _d = p; p = d; d = _d; } distance = p[n]; }
OCR_Original	workflow
OCR_Compressed	workflow
Compress_Image	workflow
Decompress_Image	workflow
Read_Text_File	localworker	Script BufferedReader getReader (String fileUrl) throws IOException { InputStreamReader reader; try { reader = new FileReader(fileUrl); } catch (FileNotFoundException e) { // try a real URL instead URL url = new URL(fileUrl); reader = new InputStreamReader (url.openStream()); } return new BufferedReader(reader); } StringBuffer sb = new StringBuffer(4000); BufferedReader in = getReader(fileurl); String str; String lineEnding = System.getProperty("line.separator"); while ((str = in.readLine()) != null) { sb.append(str); sb.append(lineEnding); } in.close(); filecontents = sb.toString();
Read_Text_File_2	localworker	Script BufferedReader getReader (String fileUrl) throws IOException { InputStreamReader reader; try { reader = new FileReader(fileUrl); } catch (FileNotFoundException e) { // try a real URL instead URL url = new URL(fileUrl); reader = new InputStreamReader (url.openStream()); } return new BufferedReader(reader); } StringBuffer sb = new StringBuffer(4000); BufferedReader in = getReader(fileurl); String str; String lineEnding = System.getProperty("line.separator"); while ((str = in.readLine()) != null) { sb.append(str); sb.append(lineEnding); } in.close(); filecontents = sb.toString();

Beanshells (1)

Name	Description	Inputs	Outputs
Compute_Levenshtein_Distance		baseline compressed	distance

Outputs (6)

Name	Description
LevenshteinDistance
baselineLog
Compress_Image_Log
EncodingScanningLog
Compressed_Contents
Original_Contents

Datalinks (17)

Source	Sink
Read_Text_File:filecontents	Compute_Levenshtein_Distance:compressed
Read_Text_File_2:filecontents	Compute_Levenshtein_Distance:baseline
InputImage	OCR_Original:InputImage
Language	OCR_Original:Language
Decompress_Image:OutputImage	OCR_Compressed:InputImage
Language	OCR_Compressed:Language
Rate	Compress_Image:CompressionRate
InputImage	Compress_Image:InputImage
Compress_Image:OutputImage	Decompress_Image:InputImage
OCR_Compressed:OutputText	Read_Text_File:fileurl
OCR_Original:OutputText	Read_Text_File_2:fileurl
Compute_Levenshtein_Distance:distance	LevenshteinDistance
OCR_Original:Log	baselineLog
Compress_Image:Log	Compress_Image_Log
OCR_Compressed:Log	EncodingScanningLog
Read_Text_File:filecontents	Compressed_Contents
Read_Text_File_2:filecontents	Original_Contents
