Semantic clustering (with k-medoids) of SPARQL query results over RDF version of dataset

Created: 2012-01-29 09:28:33

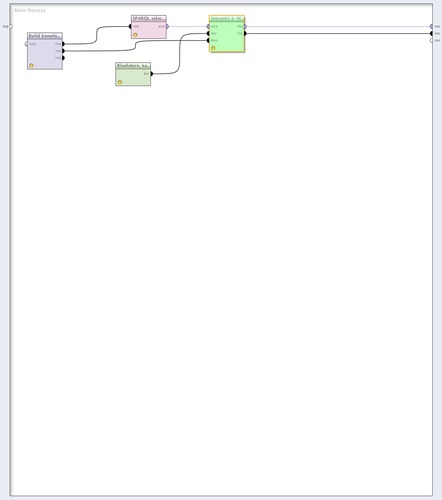

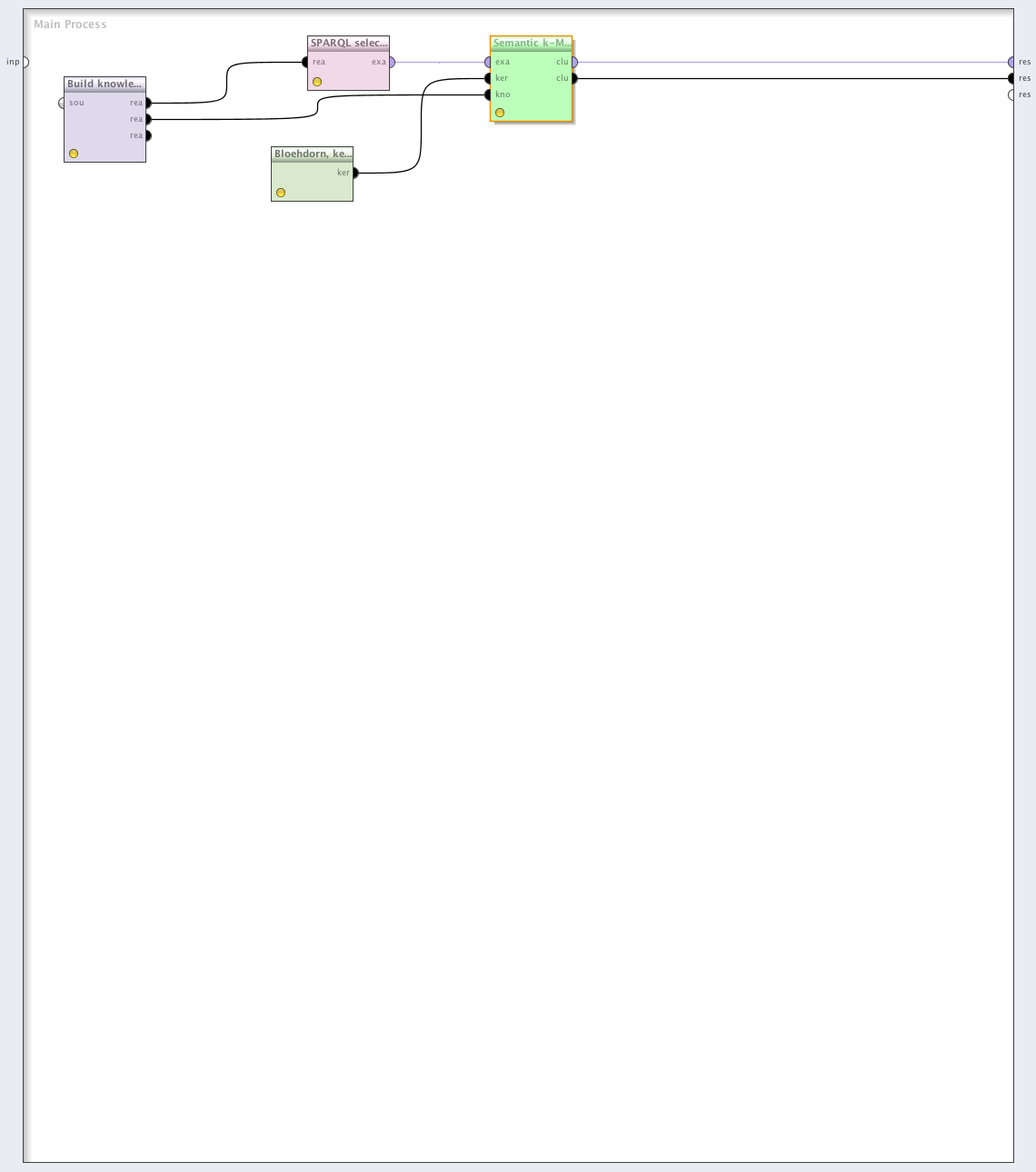

The workflow uses RapidMiner extension named RMonto ( to perform clustering of SPARQL query results based on chosen semantic similarity measure. Since the semantics of the backgound ontology is used in this way, we use the name "semantic clustering". The SPARQL query is entered in a parameter of "SPARQL selector" operator. The clustering operator (k-medoids) allows to specify which of the query variables are to be used as clustering criteria. If more than one variable is used than the results are clustered such that kind of multifaceted hierarchy is computed over them, which is dynamically determined. More on such functionality may be found in [1]. The parameters of the operator allow to choose URI attributes (query variables that are bound to OWL classes), and "normal" attributes that is variables that are bound to literal values (numerical, strings, etc.). Operator "Build knowledge base" is responsible for collecting data either from OWL files or SPARQL endpoints or RDF repositories and provide it to the subsequent operators in a workflow. In this workflow, this operator retrieves the data from a Sesame/OWLIM repository whose address is given as the operator's parameter. The repository stores the Digital Multimedia Repositories Ontology (DMRO), and DMRO-based RDF version of dataset (see:,

[1] Lawrynowicz A., Potoniec J., Konieczny L., Madziar M., Nowak A. and K. T. Pawlak: ASPARAGUS - A System for Automatic SPARQL Query Results Aggregation Using Semantics. In ICCCI (1). Vol. 6922 of LNCS, Springer, (2011): 304-313

Information Preview

Information Run

Not available

Information Workflow Components


Information Workflow Type


Information Uploader

Information License

All versions of this Workflow are licensed under:

Information Version 1 (of 1)

Information Credits (0)



Information Attributions (0)



Information Tags (8)

Log in to add Tags

Information Shared with Groups (2)

Information Featured In Packs (1)

Log in to add to one of your Packs

Information Attributed By (0)



Information Favourited By (0)

No one

Information Statistics


Citations (0)


Version History

In chronological order:

Reviews Reviews (0)

No reviews yet

Be the first to review!

Comments Comments (1)

Log in to make a comment

  • Monday 15 May 2017 12:33:48 (UTC)

    This experiment cannot be run in the current version of Rapidminer with ontology extension.
