Hadoop Large Document Collection Data Preparation

Created: 2012-08-17 12:19:39 Last updated: 2012-08-18 18:39:26

Download Workflow

Workflow for preparing large document collections for data analysis. Different types of hadoop jobs (Hadoop-Streaming-API, Hadoop Map/Reduce, and Hive) are used for specific purposes.

The *PathCreator components create text files with absolute file paths using the unix command 'find'. The workflow then uses 1) a Hadoop Streaming API component (HadoopStreamingExiftoolRead) based on a bash script for reading image metadata using Exiftool, 2) the Map/Reduce component (HadoopHocrAvBlockWidthMapReduce) presented above, and 3) Hive components for creating data tables (HiveLoad*Data) and performing queries on the result files (HiveSelect).

The code for the two hadoop jobs is available on Github: tb-lsdr-seqfilecreator and tb-lsdr-hocrparser.

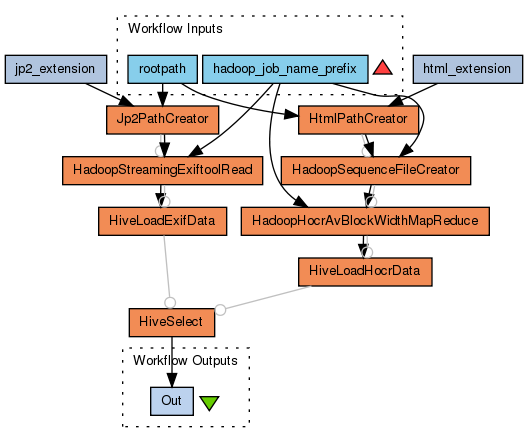

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/3105/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (0)

Dependencies (0)

Inputs (2)

Name	Description
hadoop_job_name_prefix	Hadoop job name prefix for
rootpath

Processors (10)

Name	Type	Description
HadoopHocrAvBlockWidthMapReduce	externaltool
HadoopSequenceFileCreator	externaltool
HtmlPathCreator	externaltool
Jp2PathCreator	externaltool
html_extension	stringconstant	Value html
jp2_extension	stringconstant	Value jp2
HadoopStreamingExiftoolRead	externaltool
HiveLoadExifData	externaltool
HiveLoadHocrData	externaltool
HiveSelect	externaltool

Beanshells (0)

Outputs (1)

Name	Description
Out

Datalinks (13)

Source	Sink
HadoopSequenceFileCreator:STDOUT	HadoopHocrAvBlockWidthMapReduce:hdfs_input_dir
hadoop_job_name_prefix	HadoopHocrAvBlockWidthMapReduce:hadoop_job_name_prefix
hadoop_job_name_prefix	HadoopSequenceFileCreator:hadoop_job_name_prefix
HtmlPathCreator:STDOUT	HadoopSequenceFileCreator:hdfs_input_path
rootpath	HtmlPathCreator:rootpath
html_extension:value	HtmlPathCreator:extfilter
rootpath	Jp2PathCreator:rootpath
jp2_extension:value	Jp2PathCreator:extfilter
Jp2PathCreator:STDOUT	HadoopStreamingExiftoolRead:hdfs_input_dir
hadoop_job_name_prefix	HadoopStreamingExiftoolRead:hadoop_job_name_prefix
HadoopStreamingExiftoolRead:STDOUT	HiveLoadExifData:hdfs_result_file
HadoopHocrAvBlockWidthMapReduce:STDOUT	HiveLoadHocrData:hdfs_result_file
HiveSelect:STDOUT	Out

Coordinations (7)

Controller	Target
HadoopSequenceFileCreator	HadoopHocrAvBlockWidthMapReduce
HtmlPathCreator	HadoopSequenceFileCreator
HiveLoadExifData	HiveSelect
HadoopStreamingExiftoolRead	HiveLoadExifData
HiveLoadHocrData	HiveSelect
Jp2PathCreator	HadoopStreamingExiftoolRead
HadoopHocrAvBlockWidthMapReduce	HiveLoadHocrData
