Mp3 To Wav Migrate QA CLI List Test

Created: 2012-11-05 11:43:51 Last updated: 2012-11-13 10:54:26

Download Workflow

This workflow migrates an mp3 file to wav using a SCAPE ffmpeg web service. It validates the migrated file using a jhove2 SCAPE web service. It extracts and compares simple characteristic using an ffprobe SCAPE web service. This workflow matches solution (most of) SO4 on the SCAPE opf wiki, see http://wiki.opf-labs.org/display/SP/SO4+Audio+mp3+to+wav+Migration+and+QA+Workflow

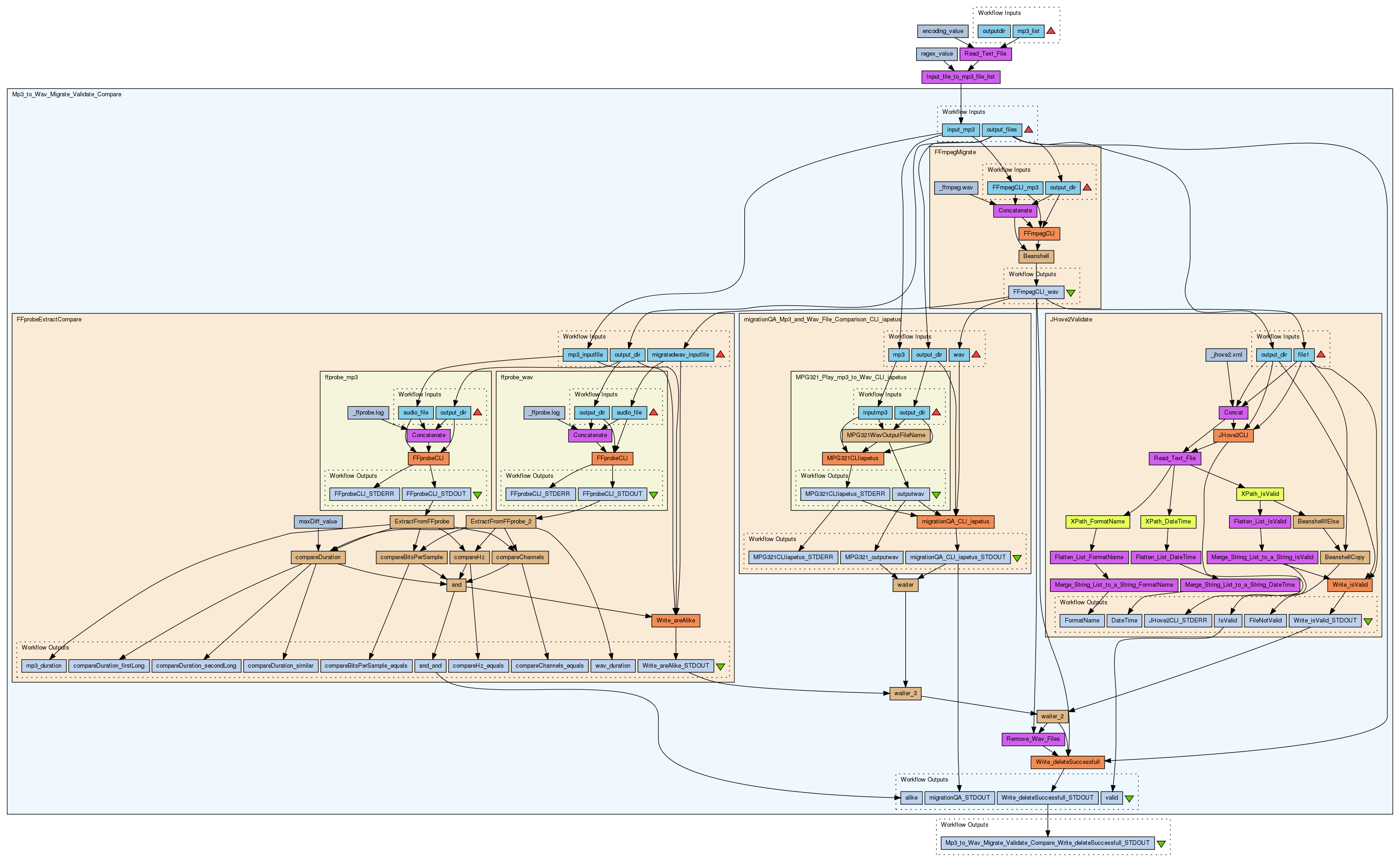

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/3292/download?version=2
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (0)

Dependencies (0)

Inputs (2)

Name	Description
mp3_list	Fileurl as Value with list of MP3 input files
outputdir

Processors (5)

Name	Type	Description
Mp3_to_Wav_Migrate_Validate_Compare	workflow
Input_file_to_mp3_file_list	localworker	Script List split = new ArrayList(); if (!string.equals("")) { String regexString = ","; if (regex != void) { regexString = regex; } String[] result = string.split(regexString); for (int i = 0; i < result.length; i++) { split.add(result[i]); } }
regex_value	stringconstant	Value \n
Read_Text_File	localworker	Script BufferedReader getReader (String fileUrl, String encoding) throws IOException { InputStreamReader reader; try { if (encoding == null) { reader = new FileReader(fileUrl); } else { reader = new InputStreamReader(new FileInputStream(fileUrl),encoding); } } catch (FileNotFoundException e) { // try a real URL instead URL url = new URL(fileUrl); if (encoding == null) { reader = new InputStreamReader (url.openStream()); } else { reader = new InputStreamReader (url.openStream(), encoding); } } return new BufferedReader(reader); } StringBuffer sb = new StringBuffer(4000); if (encoding == void) { encoding = null; } BufferedReader in = getReader(fileurl, encoding); String str; String lineEnding = System.getProperty("line.separator"); while ((str = in.readLine()) != null) { sb.append(str); sb.append(lineEnding); } in.close(); filecontents = sb.toString();
encoding_value	stringconstant	Value utf8

Beanshells (14)

Name	Inputs	Outputs
ExtractFromFFprobe	ffprobe_output	duration hz channels bitsPerSample bitrate
ExtractFromFFprobe_2	ffprobe_output	duration hz channels bitsPerSample bitrate
compareBitsPerSample	first second	equals
compareHz	first second	equals
compareDuration	first second maxDiff	similar firstLong secondLong
compareChannels	first second	equals
and	inputvaerdier	and
BeanshellIfElse	nodelist	trueOut falseOut
BeanshellCopy	run filename	fileout
MPG321WavOutputFileName	mp3 dir	wav
waiter	wait passThru	passed
waiter_2	wait passThru	passed
waiter_3	wait passThru	passed
Beanshell	wait passThru	passed

Outputs (1)

Name	Description
Mp3_to_Wav_Migrate_Validate_Compare_Write_deleteSuccessfull_STDOUT

Datalinks (6)

Source	Sink
Input_file_to_mp3_file_list:split	Mp3_to_Wav_Migrate_Validate_Compare:input_mp3
regex_value:value	Input_file_to_mp3_file_list:regex
Read_Text_File:filecontents	Input_file_to_mp3_file_list:string
mp3_list	Read_Text_File:fileurl
encoding_value:value	Read_Text_File:encoding
Mp3_to_Wav_Migrate_Validate_Compare:Write_deleteSuccessfull_STDOUT	Mp3_to_Wav_Migrate_Validate_Compare_Write_deleteSuccessfull_STDOUT

Coordinations (0)

Information Workflow Type

Taverna 2

Information Uploader

Bolette Jurik

Information License

All versions of this Workflow are licensed under:

Information Version 2 (of 4)

Information Credits (1)

(People/Groups)

Bolette Jurik

Information Attributions (0)

(Workflows/Files)

None

Information Tags (12)

Uploader tags

Log in to add Tags

Information Shared with Groups (1)

SCAPE

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

3436 viewings

1704 downloads

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

Migrate and QA list

Created by Bolette Jurik on Monday 05 November 2012 11:43:48 (UTC)

Last edited by Bolette Jurik on Monday 05 November 2012 11:45:10 (UTC)
Migrate and QA list

Created by Bolette Jurik on Monday 05 November 2012 11:52:42 (UTC)

Last edited by Bolette Jurik on Monday 05 November 2012 11:53:37 (UTC)
Migrate and QA list

Created by Bolette Jurik on Monday 05 November 2012 11:56:55 (UTC)

Last edited by Bolette Jurik on Monday 05 November 2012 11:57:35 (UTC)
Mp3 To Wav Migrate QA CLI List Test

Created by Bolette Jurik on Tuesday 13 November 2012 10:54:26 (UTC)
