Workflow Entry: Retrieve_bio_documents

Created at: 10/12/07 @ 22:15:54 Last updated: 10/12/07 @ 22:45:49

Version 2 (latest) (of 2)

Version created on: 10/12/07 @ 22:15:54 by: Marco Roos | Revision comments Expand

Last edited on: 10/12/07 @ 22:45:49 by: Marco Roos

Title: Retrieve_bio_documents

Type: Taverna 1

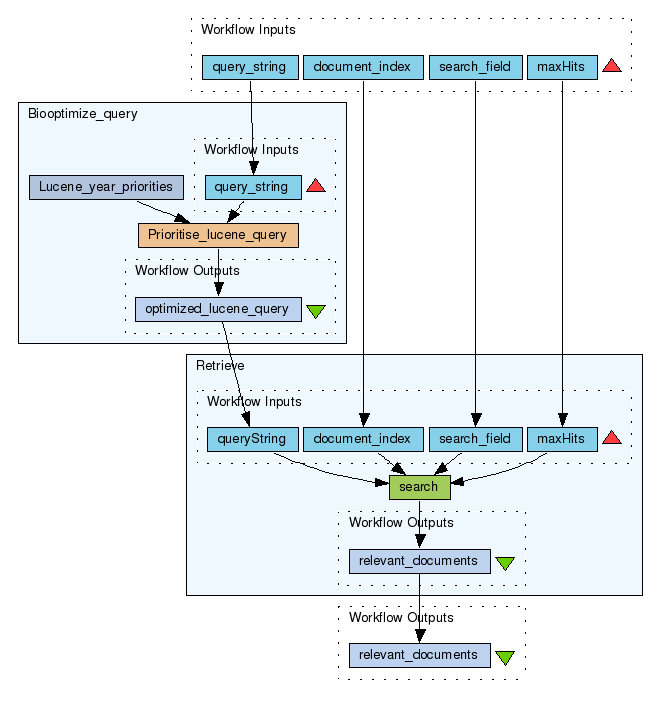

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

This workflow retrieves relevant documents, based on a query optimized by adding a string to the original query that will rank the search output according to the most recent years. The added string adds years with priorities (most recent is highest); it starts at 2007.

Download

Download Workflow File/Package (SCUFL)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Launch in Taverna

Note: you need to have both the WHIP Launcher and the Taverna myExperiment/WHIP plugin installed on your machine for this to work. See here for information.

Option 2:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/117/download?version=2
[ More Info Expand ]

Workflow Components

Inputs (4)

Name	Description
query_string	e.g. EZH2
document_index	e.g. MedLine_new
search_field	e.g. content
maxHits	e.g. 100

Processors (2)

Name	Type	Description
Retrieve	workflow	This workflow applies the search web service from the AIDA toolbox. Comments: This search service is based on lucene defaults; it may be necessary to optimize the querystring to adopt the behaviour to what is most relevant in a particular domain (e.g. for medline prioritizing based on publication date is useful). Lucene favours shorter sentences, which may be bad for subsequent information extraction.
Biooptimize_query	workflow	This workflow does four things: 1. it retrieves documents relevant for the query string 2. it discovers entities in those documents, these are considered relevant entities 3. it filters proteins from those entities (on the tag protein_molecule) 4. it removes all terms from the list produced by 3 (query terms temporarily considered proteins) ToDo * Replace step 4 by the following procedure: 1. remove the query terms from the output of NER (probably by a regexp matching on what is inside the tag, possibly case-insensitive) 2. remove tag_as_protein_molecule (obsolete) * Add synonym service/workflow Note that Remove_inputquery has an alternative iteration strategy (dot product instead of cross product). Idem for 'Join' in 'SplitQuery'.

Beanshells (1)

Name	Description	Inputs	Outputs
Prioritise_lucene_query		query_string priority_string	lucene_query

Outputs (1)

Name	Description
relevant_documents

Links (6)

Source	Sink
query_string	Biooptimize_query:query_string
Biooptimize_query:optimized_lucene_query	Retrieve:queryString
document_index	Retrieve:document_index
maxHits	Retrieve:maxHits
search_field	Retrieve:search_field
Retrieve:relevant_documents	relevant_documents

Coordinations (0)

Information Workflow Type

Taverna 1

Information Original Uploader

Marco Roos

Information License

All versions of this Workflow are licensed under:

Information Credits (3)

(People/Groups)

Information Attributions (0)

(Workflows/Files)

None

Information Tags (5)

Original Uploader tags

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Ratings (2)

Current:

4.5 / 5

(2 ratings)

Log in to rate and see breakdown of ratings

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

861 viewings

1023 downloads

[ see breakdown ]

Citations (0)

None

Version History

Earliest Version:
[1] - Retrieve_bio_documents

Created on: Monday 10 December 2007 @ 22:15:54 (GMT)

Created by: Marco Roos

Revision comments:

None

Latest Version:
[2] - Retrieve_bio_documents

Created on: Monday 10 December 2007 @ 22:15:54 (GMT)

Created by: Marco Roos

Last edited on: Monday 10 December 2007 @ 22:45:49 (GMT)

Last edited by: Marco Roos

Revision comments:

Added examples for the inputs

Reviews (0)

No reviews yet

Be the first to review!

Comments (2)

View Timeline

Log in to make a comment

Paul Fisher

Hi Marco,

Could you please add some instructions on what to enter, and maybe some examples.

cheers,

Paul.

Marco Roos	Monday 14 January 2008 @ 12:01:08 (GMT)
	Response to Paul's comment about the instructions. One example for each input is given when you click 'New input' in the run window in Taverna. This is quite minimal; I intend to add more info later and upload a new version.
