Workflow Entry: Uniprot Protein Visualization

Created at: 01/05/10 @ 20:29:37 Last updated: 01/05/10 @ 20:40:10

Version 1 (of 1)

Version created on: 01/05/10 @ 20:29:37 by: David Withers | Revision comments Expand

Last edited on: 01/05/10 @ 20:40:11 by: David Withers

Title: Uniprot Protein Visualization

Type: Taverna 2

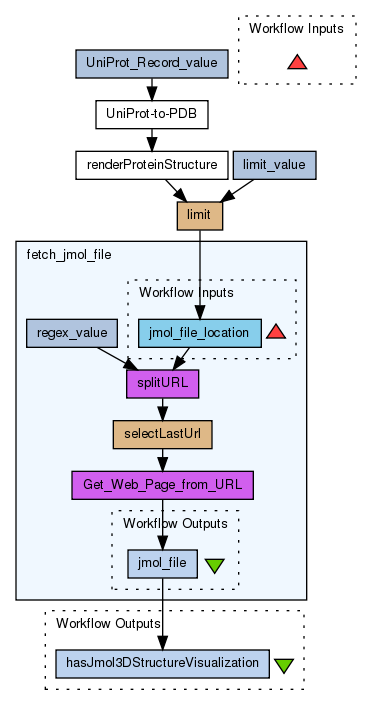

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

Jmol 3D visualization of a protein structure.

Download

Download Workflow File/Package (T2FLOW)

Download Workflow as a Galaxy tool

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/1239/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (2)

Descriptions (1)

Inputs (0)

Processors (6)

Name	Type	Description
UniProt_Record_value	stringconstant
fetch_jmol_file	workflow
limit	beanshell
limit_value	stringconstant
UniProt-to-PDB	sadi
renderProteinStructure	sadi

Beanshells (2)

Name	Description	Inputs	Outputs
limit		limit input	output
selectLastUrl		in	out

Outputs (1)

Name	Description
hasJmol3DStructureVisualization

Datalinks (6)

Source	Sink
limit:output	fetch_jmol_file:jmol_file_location
limit_value:value	limit:limit
renderProteinStructure:hasJmol3DStructureVisualization (Thing)	limit:input
UniProt_Record_value:value	UniProt-to-PDB:UniProt_Record
UniProt-to-PDB:has3DStructure (PDB_Record)	renderProteinStructure:PDB_Record
fetch_jmol_file:jmol_file	hasJmol3DStructureVisualization

Coordinations (0)

Information Workflow Type

Taverna 2

Information Original Uploader

David Withers

Information License

All versions of this Workflow are licensed under:

Information Credits (0)

(People/Groups)

None

Information Attributions (0)

(Workflows/Files)

None

Information Tags (3)

Original Uploader tags

pdb
|
sadi
|
uniprot

Log in to add Tags

Information Shared with Groups (1)

SADI

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Ratings (1)

Current:

5.0 / 5

(1 rating)

Log in to rate and see breakdown of ratings

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (1)

Mark Wilkinson

Information Statistics

338 viewings

417 downloads

[ see breakdown ]

Citations (0)

None

Version History

Earliest Version:
[1] - Uniprot Protein Visualization

Created on: Saturday 01 May 2010 @ 20:29:37 (GMT)

Created by: David Withers

Last edited on: Saturday 01 May 2010 @ 20:40:11 (GMT)

Last edited by: David Withers

Revision comments:

None

This Workflow only has one version.

Reviews (1)

Write your own Review

Mark Wilkinson

Title: Ideas for extension of the workflow

Rating: 5 out of 5

Created: 17/02/11 @ 19:49:14 | Updated: 17/02/11 @ 19:50:28

works exactly as indicated. Input is the UniProt ID of any protein of interest. To extend this workflow futher, you can add the SADI KEGG Pathway -> KEGG Genes service, then KEGG Genes -> UniProt IDs service. This will then give you the jMol visualization of all of the proteins in a given pathway. Very very cool :-)
