Workflow Entry: Call VSO web service with HELIO input data

Created at: 04/08/10 @ 11:21:15 Last updated: 04/08/10 @ 11:22:26

Version 1 (of 1)

Version created on: 04/08/10 @ 11:21:15 by: Anja Le Blanc | Revision comments Expand

Last edited on: 04/08/10 @ 11:22:26 by: Anja Le Blanc

Title: Call VSO web service with HELIO input data

Type: Taverna 2

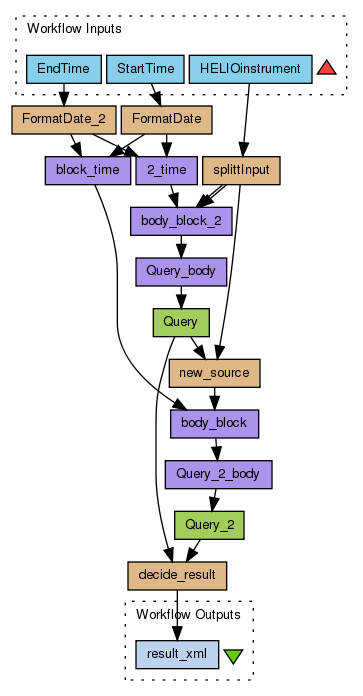

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

date transformation from 2000-10-02T23:00:00 to 20001002230000 HELIO instrument names as in http://helio-dev.i4ds.ch/xsd/instruments.xsd spitt into source and instrument names; if these pair don't exist only first part (source) is tried.

Download

Download Workflow File/Package (T2FLOW)

Download Workflow as a Galaxy tool

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/1466/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (2)

Inputs (3)

Name	Description
StartTime	start time of search in format yyyy-MM-dd'T'HH:mm:ss start time of search in format
EndTime	end time of search in format yyyy-MM-dd'T'HH:mm:ss
HELIOinstrument	instrument name as defined in http://helio-dev.i4ds.ch/xsd/instruments.xsd

Processors (13)

Name	Type	Description
Query	wsdl
Query_body	xmlsplitter
body_block_2	xmlsplitter
2_time	xmlsplitter
FormatDate	beanshell
FormatDate_2	beanshell
splittInput	beanshell
new_source	beanshell
Query_2	wsdl
Query_2_body	xmlsplitter
body_block	xmlsplitter
block_time	xmlsplitter
decide_result	beanshell

Beanshells (5)

Name	Inputs	Outputs
FormatDate	timeJava	timeString
FormatDate_2	timeJava	timeString
splittInput	instrument	instrument_out source
new_source	xml source	source
decide_result	xml1 xml2	result_xml

Outputs (1)

Name	Description
result_xml

Datalinks (21)

Source	Sink
Query_body:output	Query:body
body_block_2:output	Query_body:block
2_time:output	body_block_2:time
splittInput:source	body_block_2:source
splittInput:instrument_out	body_block_2:instrument
FormatDate:timeString	2_time:start
FormatDate_2:timeString	2_time:end
StartTime	FormatDate:timeJava
EndTime	FormatDate_2:timeJava
HELIOinstrument	splittInput:instrument
splittInput:source	new_source:source
Query:body	new_source:xml
Query_2_body:output	Query_2:body
body_block:output	Query_2_body:block
new_source:source	body_block:source
block_time:output	body_block:time
FormatDate_2:timeString	block_time:end
FormatDate:timeString	block_time:start
Query_2:body	decide_result:xml2
Query:body	decide_result:xml1
decide_result:result_xml	result_xml
