Workflow Entry: instruments in sxr and euv spectrum

Created at: 20/08/10 @ 15:39:20 Last updated: 20/08/10 @ 15:39:22

Version 1 (of 1)

Version created on: 20/08/10 @ 15:39:19 by: Anja Le Blanc | Revision comments Expand

Title: instruments in sxr and euv spectrum

Type: Taverna 2

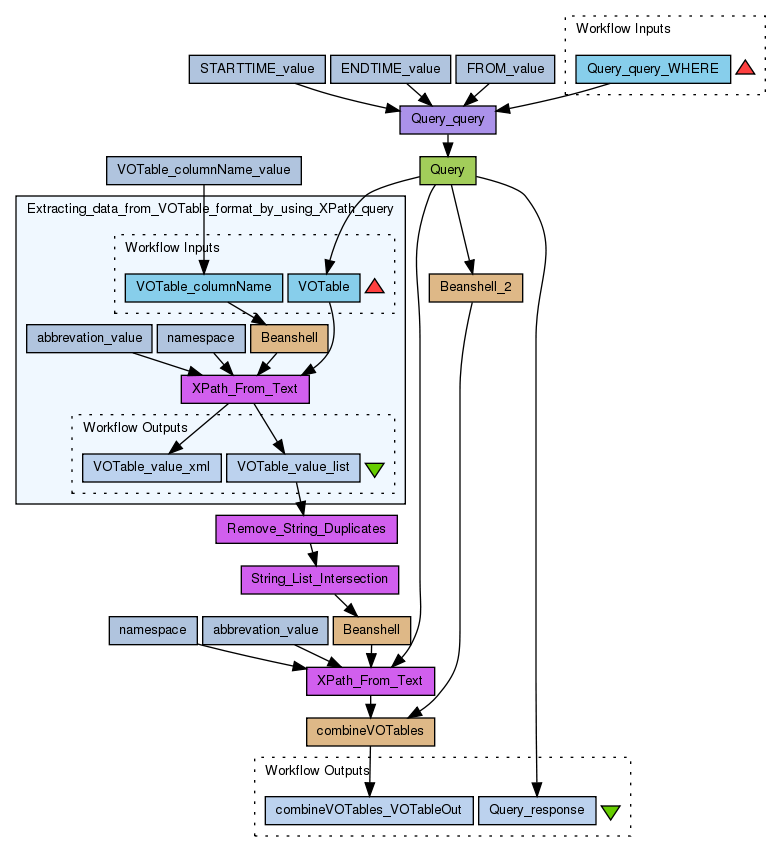

(Click on the image to get the full size)

ICS use case 5

Option 1:

Authors (1)

Titles (1)

Descriptions (1)

Inputs (1)

Name	Description
Query_query_WHERE	1) ins_obs_position,in-situ 2) ins_obs_position,in-situ;ins_obs_ent_element,fields;ins_obs_ent_type,magnetic

Processors (15)

Name	Type	Description
Query	wsdl
Query_query	xmlsplitter
STARTTIME_value	stringconstant
ENDTIME_value	stringconstant
FROM_value	stringconstant
Extracting_data_from_VOTable_format_by_using_XPath_query	workflow
VOTable_columnName_value	stringconstant
Remove_String_Duplicates	localworker
String_List_Intersection	localworker
XPath_From_Text	localworker
Beanshell	beanshell
namespace	stringconstant
abbrevation_value	stringconstant
Beanshell_2	beanshell
combineVOTables	beanshell

Beanshells (4)

Name	Inputs	Outputs
Beanshell	columnName	xPath
Beanshell_2	inlist	outFirst
combineVOTables	VOTable data	VOTableOut
Beanshell	columnName	xPath

Outputs (2)

Name	Description
Query_response
combineVOTables_VOTableOut

Datalinks (19)

Source	Sink
Query_query:output	Query:query
STARTTIME_value:value	Query_query:STARTTIME
ENDTIME_value:value	Query_query:ENDTIME
FROM_value:value	Query_query:FROM
Query_query_WHERE	Query_query:WHERE
Query:response	Extracting_data_from_VOTable_format_by_using_XPath_query:VOTable
VOTable_columnName_value:value	Extracting_data_from_VOTable_format_by_using_XPath_query:VOTable_columnName
Extracting_data_from_VOTable_format_by_using_XPath_query:VOTable_value_list	Remove_String_Duplicates:stringlist
Remove_String_Duplicates:strippedlist	String_List_Intersection:list
Beanshell:xPath	XPath_From_Text:xpath
namespace:value	XPath_From_Text:namespace
abbrevation_value:value	XPath_From_Text:abbrevation
Query:response	XPath_From_Text:xmltext
String_List_Intersection:intersection	Beanshell:columnName
Query:response	Beanshell_2:inlist
Beanshell_2:outFirst	combineVOTables:VOTable
XPath_From_Text:nodelistAsXML	combineVOTables:data
Query:response	Query_response
combineVOTables:VOTableOut	combineVOTables_VOTableOut
