retrive dpas data for all ics instruments for only a limited number (3 random) HEC event data

Workflow Entry: retrive dpas data for all ics instruments for only a limited number (3 random) HEC event data

Created at: 14/09/10 @ 14:24:20 Last updated: 14/09/10 @ 14:24:24

Version 1 (of 1)

Version created on: 14/09/10 @ 14:24:20 by: Anja Le Blanc | Revision comments Expand

Title: retrive dpas data for all ics instruments for only a limited number (3 random) HEC event data

Type: Taverna 2

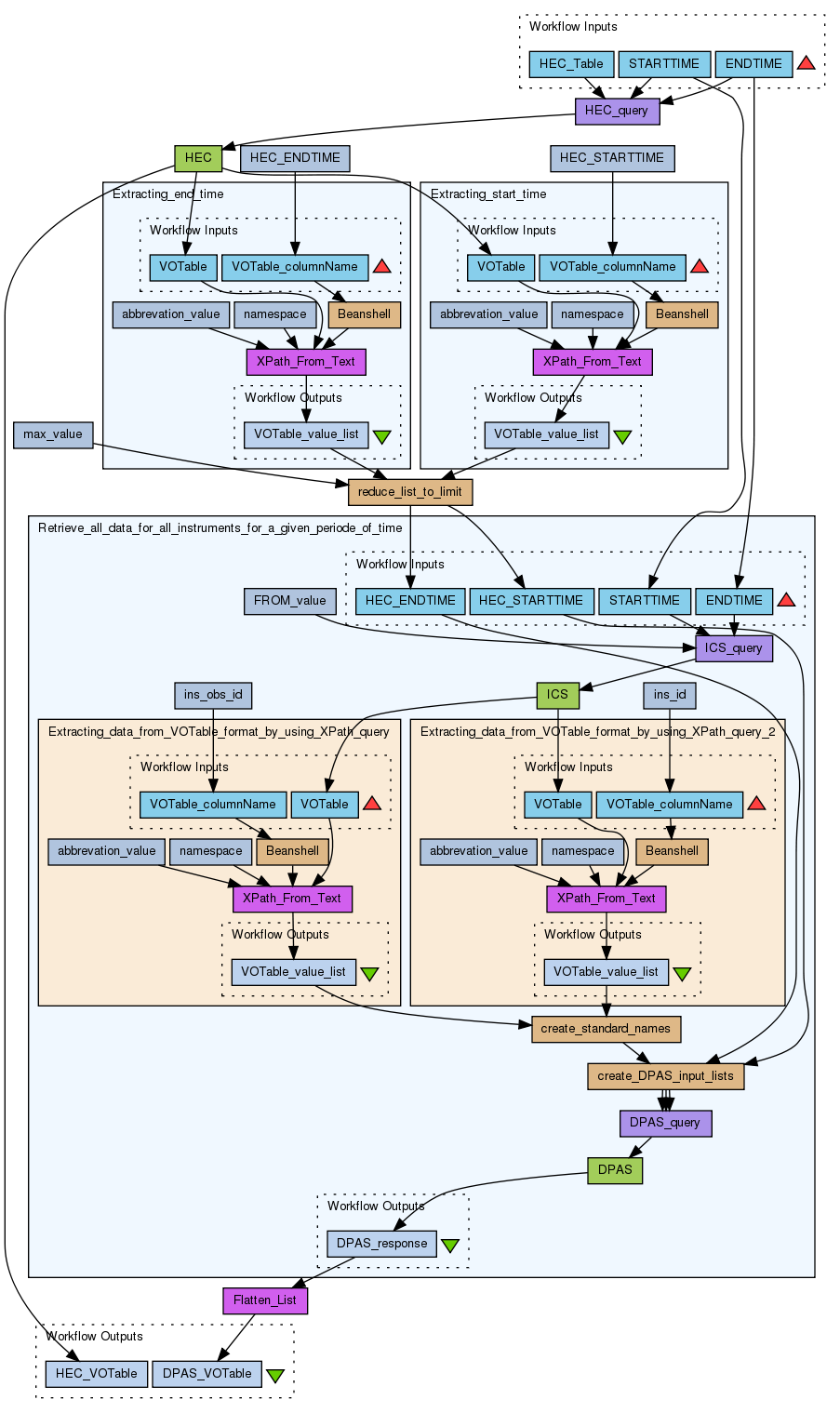

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

This workflow demonstrates the standard query where events for a period of time are requested from the HEC service, available instruments for this time come from the ICS and data only for the times of the events are requested from the DPAS. In this version data from only 3 random events (out of the HEC list) will be requested from the DPAS.

Download

Download Workflow File/Package (T2FLOW)

Download Workflow as a Galaxy tool

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/1513/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (2)

Descriptions (1)

Inputs (3)

Name	Description
HEC_Table	HEC table names - catalogue which should be used HEC table names - catalogue which should be used more info at: http://hec.ts.astro.it/sec_ui.php
ENDTIME	end time for event search - standard format 2004-01-12T12:00:00
STARTTIME	start time for search - standard format

Processors (10)

Name	Type	Description
HEC	wsdl
HEC_query	xmlsplitter
Retrieve_all_data_for_all_instruments_for_a_given_periode_of_time	workflow
Extracting_start_time	workflow
Extracting_end_time	workflow
HEC_STARTTIME	stringconstant
HEC_ENDTIME	stringconstant
reduce_list_to_limit	beanshell
max_value	stringconstant
Flatten_List	localworker

Beanshells (4)

Name	Inputs	Outputs
reduce_list_to_limit	start_date end_date max	reduced_start reduced_end
Beanshell	columnName	xPath
create_standard_names	observatory instrument	HELIO_instrument
create_DPAS_input_lists	startdates enddates instruments	startdatesout enddatesout instrumentsout

Outputs (2)

Name	Description
HEC_VOTable
DPAS_VOTable

Datalinks (18)

Source	Sink
HEC_query:output	HEC:query
HEC_Table	HEC_query:FROM
ENDTIME	HEC_query:ENDTIME
STARTTIME	HEC_query:STARTTIME
STARTTIME	Retrieve_all_data_for_all_instruments_for_a_given_periode_of_time:STARTTIME
ENDTIME	Retrieve_all_data_for_all_instruments_for_a_given_periode_of_time:ENDTIME
reduce_list_to_limit:reduced_end	Retrieve_all_data_for_all_instruments_for_a_given_periode_of_time:HEC_ENDTIME
reduce_list_to_limit:reduced_start	Retrieve_all_data_for_all_instruments_for_a_given_periode_of_time:HEC_STARTTIME
HEC:response	Extracting_start_time:VOTable
HEC_STARTTIME:value	Extracting_start_time:VOTable_columnName
HEC:response	Extracting_end_time:VOTable
HEC_ENDTIME:value	Extracting_end_time:VOTable_columnName
max_value:value	reduce_list_to_limit:max
Extracting_end_time:VOTable_value_list	reduce_list_to_limit:end_date
Extracting_start_time:VOTable_value_list	reduce_list_to_limit:start_date
Retrieve_all_data_for_all_instruments_for_a_given_periode_of_time:DPAS_response	Flatten_List:inputlist
HEC:response	HEC_VOTable
Flatten_List:outputlist	DPAS_VOTable

Coordinations (0)

Information Workflow Type

Taverna 2

Information Original Uploader

Anja Le Blanc

Information License

All versions of this Workflow are licensed under:

Information Credits (1)

(People/Groups)

Anja Le Blanc

Information Attributions (1)

(Workflows/Files)

retrive dpas data for all ics instruments for HEC event data

Information Tags (6)

Original Uploader tags

Log in to add Tags

Information Shared with Groups (1)

HELIO

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Ratings (0)

Current:

0.0 / 5

(0 ratings)

Log in to rate and see breakdown of ratings

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

96 viewings

320 downloads

[ see breakdown ]

Citations (0)

None

Version History

Earliest Version:
[1] - retrive dpas data for all ics instruments for only a limited number (3 random) HEC event data

Created on: Tuesday 14 September 2010 @ 14:24:20 (GMT)

Created by: Anja Le Blanc

Revision comments:

None

This Workflow only has one version.
