Workflow Entry: Extract Scientific Terms

Created at: 08/12/10 @ 11:50:01 Last updated: 11/01/11 @ 11:58:09

Version 2 (latest) (of 2)

Version created on: 11/01/11 @ 11:57:20 by: Paul Fisher | Revision comments Expand

Last edited on: 11/01/11 @ 11:58:09 by: Paul Fisher

Title: Extract Scientific Terms

Type: Taverna 2

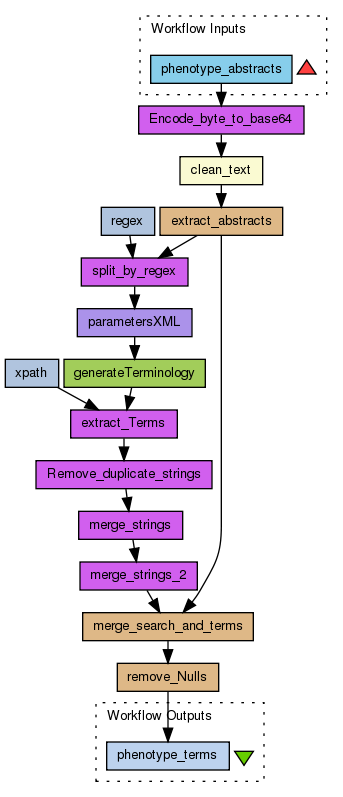

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

This workflow takes in a document containg text and removes and non-ascii characters. The cleaned text is then sent to a service in dresden to extract all scientific terms. These terms represent a profile for the input document. Any null values are also removed.

Download

Download Workflow File/Package (T2FLOW)

Download Workflow as a Galaxy tool

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/1712/download?version=2
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Inputs (1)

Name	Description
phenotype_abstracts

Processors (14)

Name	Type	Description
Encode_byte_to_base64	localworker
merge_strings_2	localworker
regex	stringconstant
xpath	stringconstant
extract_abstracts	beanshell
merge_search_and_terms	beanshell
extract_Terms	localworker
merge_strings	localworker
remove_Nulls	beanshell
Remove_duplicate_strings	localworker
parametersXML	xmlsplitter
split_by_regex	localworker
generateTerminology	wsdl
clean_text	soaplab

Beanshells (3)

Name	Inputs	Outputs
extract_abstracts	input	output output_search
merge_search_and_terms	terms search_term	output
remove_Nulls	input	output

Outputs (1)

Name	Description
phenotype_terms

Datalinks (16)

Source	Sink
phenotype_abstracts	Encode_byte_to_base64:bytes
merge_strings:concatenated	merge_strings_2:stringlist
clean_text:output	extract_abstracts:input
merge_strings_2:concatenated	merge_search_and_terms:terms
extract_abstracts:output_search	merge_search_and_terms:search_term
generateTerminology:parameters	extract_Terms:xml-text
xpath:value	extract_Terms:xpath
Remove_duplicate_strings:strippedlist	merge_strings:stringlist
merge_search_and_terms:output	remove_Nulls:input
extract_Terms:nodelist	Remove_duplicate_strings:stringlist
split_by_regex:split	parametersXML:texts
regex:value	split_by_regex:regex
extract_abstracts:output	split_by_regex:string
parametersXML:output	generateTerminology:parameters
Encode_byte_to_base64:base64	clean_text:file_direct_data
remove_Nulls:output	phenotype_terms
