Workflow Entry: EBI_MAFFT

Created at: 03/06/08 @ 05:55:43 Last updated: 06/12/10 @ 11:38:58

Version 1 (of 1)

Version created on: 03/06/08 @ 05:55:43 by: Hamish McWilliam

Last edited on: 06/12/10 @ 11:38:58 by: Hamish McWilliam

Title: EBI_MAFFT

Type: Taverna 1

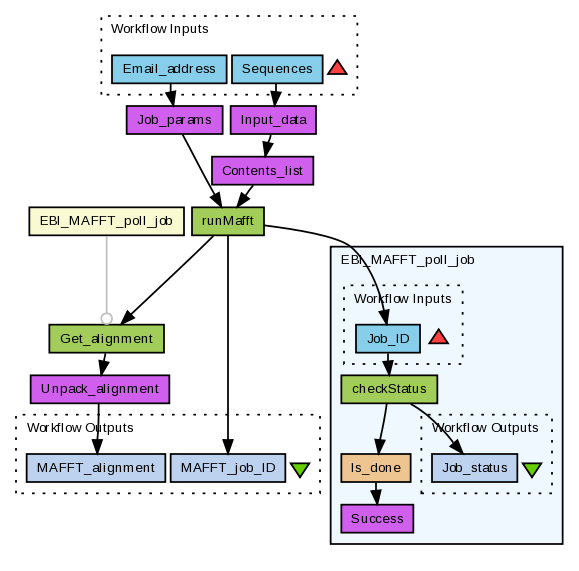

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

Perform a multiple sequence alignment using the MAFFT tool (see http://align.bmr.kyushu-u.ac.jp/mafft/software/). The EBI's WSMafft web service (see http://www.ebi.ac.uk/Tools/webservices/services/mafft) is used to access to tool.

Note: the WSMafft service used by this workflow is deprecated as of 21st September 2010 and should not be used in any new development. This service is will be retired during 2011. EBI's replacement MAFFT services (REST or SOAP) should be used instead.

Download

Download Workflow File/Package (SCUFL)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Launch in Taverna

Note: you need to have both the WHIP Launcher and the Taverna myExperiment/WHIP plugin installed on your machine for this to work. See here for information.

Option 2:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/219/download?version=1
[ More Info Expand ]

Workflow Components

Inputs (2)

Name	Description
Email_address	User e-mail address.
Sequences	Sequences to align (fasta format recommended).

Processors (7)

Name	Type	Description
runMafft	arbitrarywsdl	Submit a MAFFT analysis job (see http://www.ebi.ac.uk/Tools/webservices/services/mafft#runmafft_params_content) See the Service entry for this web service.
Job_params	local	MAFFT parameters.
Contents_list	local	Wrap input data in list.
Input_data	local	Add type to input data.
Get_alignment	arbitrarywsdl	Get the results of a job (see http://www.ebi.ac.uk/Tools/webservices/services/mafft#poll_jobid_type) See the Service entry for this web service.
Unpack_alignment	local	Convert byte[] from service into string.
EBI_MAFFT_poll_job	workflow	Check for job completion.

Beanshells (1)

Name	Description	Inputs	Outputs
Is_done	Map job status code to true/false.	job_status	is_done

Outputs (2)

Name	Description
MAFFT_job_ID	EBI job identifier
MAFFT_alignment	MAFFT alignment of sequences. By default in fasta format.

Links (10)

Source	Sink
Contents_list:output	runMafft:content
Email_address	Job_params:email
Input_data:output	Contents_list:WSArrayofData
Job_params:output	runMafft:params
Sequences	Input_data:content
Get_alignment:result	Unpack_alignment:bytes
runMafft:jobid	EBI_MAFFT_poll_job:Job_ID
Unpack_alignment:string	MAFFT_alignment
runMafft:jobid	Get_alignment:jobid
runMafft:jobid	MAFFT_job_ID

Coordinations (1)

Controller	Target
EBI_MAFFT_poll_job	Get_alignment
