Workflow Entry: Mapping Service

Created at: 06/10/11 @ 04:44:03 Last updated: 06/10/11 @ 05:01:20

Version 2 (latest) (of 2)

Version created on: 06/10/11 @ 04:59:13 by: tpacurtis | Revision comments Expand

Last edited on: 06/10/11 @ 05:01:23 by: tpacurtis

Title: Mapping Service

Type: Taverna 2

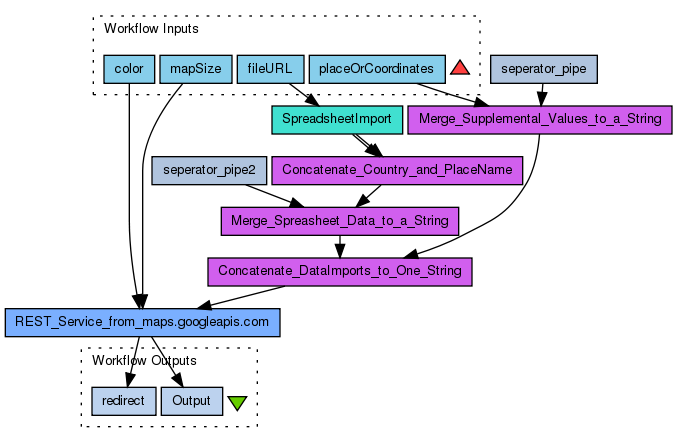

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

This service generates a google map of a group of place names and coordinates. The workflow will accept both coordinates and place names.

This workflow takes place names/coordinates from both a spreadsheet, as well as on-the-fly input of a list of coordinates or place names (please note, if no supplemental data is desired, an empty link will allow the workflow to function).

The Mapping Service workflow was created to assist in generating a map of where a series of interviews took place, but can easily be adapted for other purposes.

Download

Download Workflow File/Package (T2FLOW)

Download Workflow as a Galaxy tool

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/2474/download?version=2
[ More Info Expand ]

Workflow Components

Authors (0)

Titles (0)

Descriptions (0)

Inputs (4)

Name	Description
fileURL	Import a Spreadsheet. The workflow will support both coordinates and place names.
color	Sets the color of the pins on the map.
mapSize	Allows the user to specify the size of the map. Measured length x width.
placeOrCoordinates	If desired, add extra coordinates to the workflow not included in the spreadsheet. If no extra coordinates or place names are desired, leave this input as a blank list.

Processors (8)

Name	Type	Description
Merge_Spreasheet_Data_to_a_String	localworker
SpreadsheetImport	spreadsheet
seperator_pipe2	stringconstant
REST_Service_from_maps.googleapis.com	rest
Concatenate_Country_and_PlaceName	localworker
Merge_Supplemental_Values_to_a_String	localworker
seperator_pipe	stringconstant
Concatenate_DataImports_to_One_String	localworker

Beanshells (0)

Outputs (2)

Name	Description
Output
redirect	Final web address

Datalinks (14)

Source	Sink
seperator_pipe2:value	Merge_Spreasheet_Data_to_a_String:seperator
Concatenate_Country_and_PlaceName:output	Merge_Spreasheet_Data_to_a_String:stringlist
fileURL	SpreadsheetImport:fileurl
color	REST_Service_from_maps.googleapis.com:color
mapSize	REST_Service_from_maps.googleapis.com:size
Concatenate_DataImports_to_One_String:output	REST_Service_from_maps.googleapis.com:coordinates
SpreadsheetImport:Country	Concatenate_Country_and_PlaceName:string2
SpreadsheetImport:Place Name	Concatenate_Country_and_PlaceName:string1
seperator_pipe:value	Merge_Supplemental_Values_to_a_String:seperator
placeOrCoordinates	Merge_Supplemental_Values_to_a_String:stringlist
Merge_Supplemental_Values_to_a_String:concatenated	Concatenate_DataImports_to_One_String:string2
Merge_Spreasheet_Data_to_a_String:concatenated	Concatenate_DataImports_to_One_String:string1
REST_Service_from_maps.googleapis.com:responseBody	Output
REST_Service_from_maps.googleapis.com:redirection	redirect
