Ice Class Map pixel analysis (NERSC)

Workflow Entry: Ice Class Map pixel analysis (NERSC)

Created at: 02/11/11 @ 10:08:05 Last updated: 02/11/11 @ 10:10:50

Version 1 (of 1)

Version created on: 02/11/11 @ 10:08:05 by: Jorgejesus | Revision comments Expand

Last edited on: 02/11/11 @ 10:10:52 by: Jorgejesus

Title: Ice Class Map pixel analysis (NERSC)

Type: Taverna 2

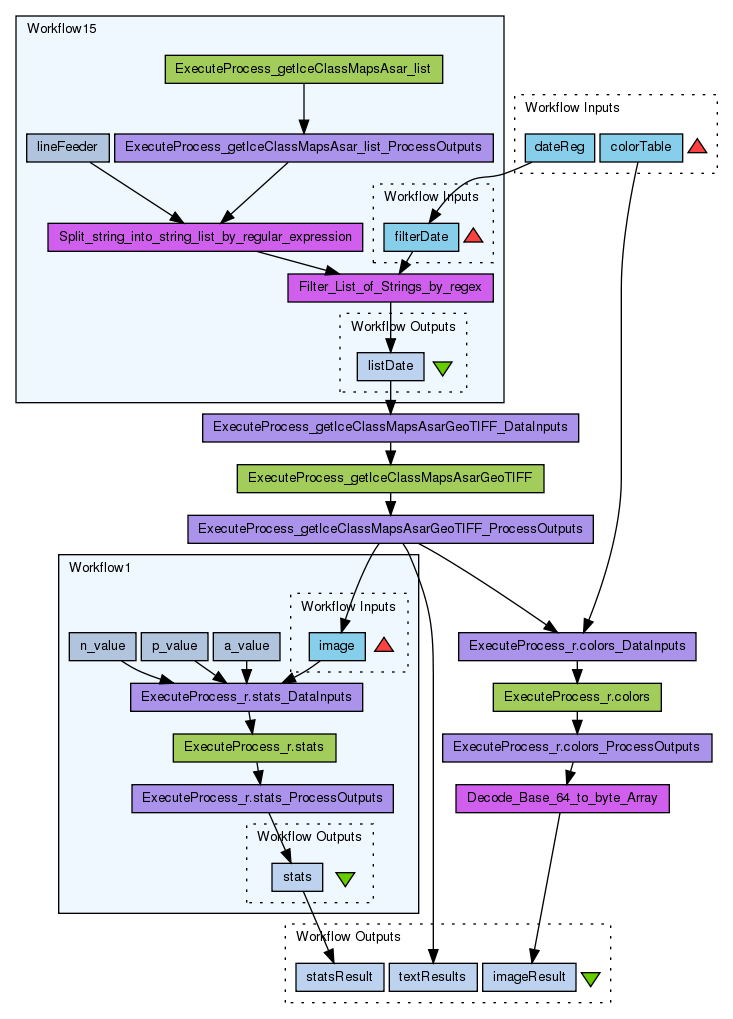

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

NERSC ice classification workflow. Avaible images for a specific date will be fecthed from the WPS service, and their color table changed to allow for a user to easly identify specific areas. Statistical analysis also run using the r.stats module. Worflow uses a list of image, the list will flow thru the workflow for process resulting in mutiple outputs

Download

Download Workflow File/Package (T2FLOW)

Download Workflow as a Galaxy tool

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/2517/download?version=1
[ More Info Expand ]

Workflow Components

Authors (0)

Titles (0)

Descriptions (0)

Inputs (2)

Name	Description
dateReg	Regular expression to filter available iceclassifiaction maps dates
colorTable	Color table to be applied to image: Options: aspect, grey, grey.eq, grey.log, byg, byr, gyr, rainbow, ramp, random, ryg, wave, rules. http://grass.fbk.eu/grass62/manuals/html62_user/r.colors.html

Processors (9)

Name	Type	Description
Workflow15	workflow
ExecuteProcess_getIceClassMapsAsarGeoTIFF	wsdl
ExecuteProcess_getIceClassMapsAsarGeoTIFF_DataInputs	xmlsplitter
ExecuteProcess_getIceClassMapsAsarGeoTIFF_ProcessOutputs	xmlsplitter
Workflow1	workflow
ExecuteProcess_r.colors	wsdl
ExecuteProcess_r.colors_DataInputs	xmlsplitter
ExecuteProcess_r.colors_ProcessOutputs	xmlsplitter
Decode_Base_64_to_byte_Array	localworker

Beanshells (0)

Outputs (3)

Name	Description
statsResult
imageResult
textResults

Datalinks (13)

Source	Sink
dateReg	Workflow15:filterDate
ExecuteProcess_getIceClassMapsAsarGeoTIFF_DataInputs:output	ExecuteProcess_getIceClassMapsAsarGeoTIFF:DataInputs
Workflow15:listDate	ExecuteProcess_getIceClassMapsAsarGeoTIFF_DataInputs:scenedate
ExecuteProcess_getIceClassMapsAsarGeoTIFF:ProcessOutputs	ExecuteProcess_getIceClassMapsAsarGeoTIFF_ProcessOutputs:input
ExecuteProcess_getIceClassMapsAsarGeoTIFF_ProcessOutputs:IceClassMapResult	Workflow1:image
ExecuteProcess_r.colors_DataInputs:output	ExecuteProcess_r.colors:DataInputs
ExecuteProcess_getIceClassMapsAsarGeoTIFF_ProcessOutputs:IceClassMapResult	ExecuteProcess_r.colors_DataInputs:input
colorTable	ExecuteProcess_r.colors_DataInputs:color
ExecuteProcess_r.colors:ProcessOutputs	ExecuteProcess_r.colors_ProcessOutputs:input
ExecuteProcess_r.colors_ProcessOutputs:outputResult	Decode_Base_64_to_byte_Array:base64
Workflow1:stats	statsResult
Decode_Base_64_to_byte_Array:bytes	imageResult
ExecuteProcess_getIceClassMapsAsarGeoTIFF_ProcessOutputs:textResult	textResults

Coordinations (0)

Information Workflow Type

Taverna 2

Information Original Uploader

Jorgejesus

Information License

All versions of this Workflow are licensed under:

Information Credits (1)

(People/Groups)

Jorgejesus

Information Attributions (0)

(Workflows/Files)

None

Information Tags (7)

Original Uploader tags

analysis
|
classification
|
color
|
grass
|
ice
|
nersc
|
pixel

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Ratings (0)

Current:

0.0 / 5

(0 ratings)

Log in to rate and see breakdown of ratings

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

63 viewings

43 downloads

[ see breakdown ]

Citations (0)

None

Version History

Earliest Version:
[1] - Ice Class Map pixel analysis (NERSC)

Created on: Wednesday 02 November 2011 @ 10:08:05 (GMT)

Created by: Jorgejesus

Last edited on: Wednesday 02 November 2011 @ 10:10:52 (GMT)

Last edited by: Jorgejesus

Revision comments:

None

This Workflow only has one version.

Reviews (0)

No reviews yet

Be the first to review!

Comments (1)

View Timeline

Log in to make a comment

Jorgejesus	Friday 04 November 2011 @ 10:25:42 (GMT)
	There is some sort of data corruption when Taverna runs with "in-memory storage"
