Workflow Entry: Get pathways by external reference

Created at: 13/01/10 @ 12:21:59

Version 3 (latest) (of 3)

Version created on: 13/01/10 @ 12:21:59 by: Thomaskelder | Revision comments Expand

Title: Get pathways by external reference

Type: Taverna 1

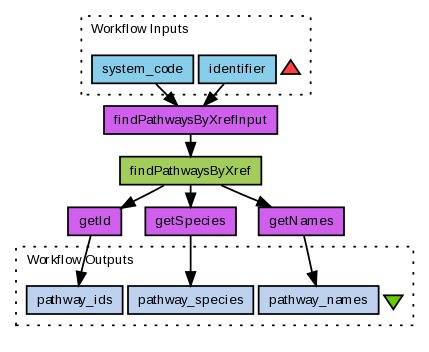

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

Finds pathways on WikiPathways by an external gene/protein/metabolite reference. See http://www.pathvisio.org/Help_1.1#Supported_database_systems for a list of supported database systems.

Download

Download Workflow File/Package (SCUFL)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Launch in Taverna

Note: you need to have both the WHIP Launcher and the Taverna myExperiment/WHIP plugin installed on your machine for this to work. See here for information.

Option 2:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/391/download?version=3
[ More Info Expand ]

Workflow Components

Inputs (2)

Name	Description
identifier	The identifier of the external reference (e.g. P48039).
system_code	The code of the external database to use. Use an empty string if you don't want to restrict the database system.

Processors (5)

Name	Type	Description
getId	local
getSpecies	local	XPath query to extract the species list from the xml response.
getNames	local	XPath query to extract the names list from the xml response.
findPathwaysByXref	arbitrarywsdl	See the Service entry for this web service.
findPathwaysByXrefInput	local

Beanshells (0)

Outputs (3)

Name	Description
pathway_names	A list with the names of the pathways that were found.
pathway_species	A list with the species of the pathways that were found.
pathway_ids

Links (9)

Source	Sink
findPathwaysByXref:parameters	getId:xml-text
findPathwaysByXref:parameters	getNames:xml-text
findPathwaysByXref:parameters	getSpecies:xml-text
findPathwaysByXrefInput:output	findPathwaysByXref:parameters
identifier	findPathwaysByXrefInput:ids
system_code	findPathwaysByXrefInput:codes
getId:nodelist	pathway_ids
getNames:nodelist	pathway_names
getSpecies:nodelist	pathway_species

Coordinations (0)

Information Workflow Type

Taverna 1

Information Original Uploader

Thomask...

Information License

All versions of this Workflow are licensed under:

Information Credits (1)

(People/Groups)

Thomaskelder

Information Attributions (0)

(Workflows/Files)

None

[ edit ]

Information Tags (5)

Original Uploader tags

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (1)

WikiPathways workflows

Log in to add to one of your Packs

Information Ratings (0)

Current:

0.0 / 5

(0 ratings)

Log in to rate and see breakdown of ratings

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

723 viewings

999 downloads

[ see breakdown ]

Citations (0)

None

Version History

Earliest Version:
[1] - Get pathways by external reference

Created on: Tuesday 16 September 2008 @ 11:18:51 (GMT)

Created by: Thomaskelder

Last edited on: Tuesday 16 September 2008 @ 11:35:40 (GMT)

Last edited by: Thomaskelder

Revision comments:

None

Previous Versions:
[2] - Get pathways by external reference

Created on: Friday 14 November 2008 @ 14:21:46 (GMT)

Created by: Thomaskelder

Revision comments:

Updated workflow to stable identifiers on WikiPathways

Latest Version:
[3] - Get pathways by external reference

Created on: Wednesday 13 January 2010 @ 12:21:59 (GMT)

Created by: Thomaskelder

Revision comments:

Adapted workflow to modified signature of findPathwaysByXref function.
