Workflow Entry: DNA sequence analysis pilot

Created at: 10/07/09 @ 14:31:27 Last updated: 30/11/09 @ 09:37:38

Version 1 (of 1)

Version created on: 10/07/09 @ 14:31:27 by: Angela Luijf | Revision comments Expand

Last edited on: 30/11/09 @ 09:37:39 by: Angela Luijf

Title: DNA sequence analysis pilot

Type: Taverna 1

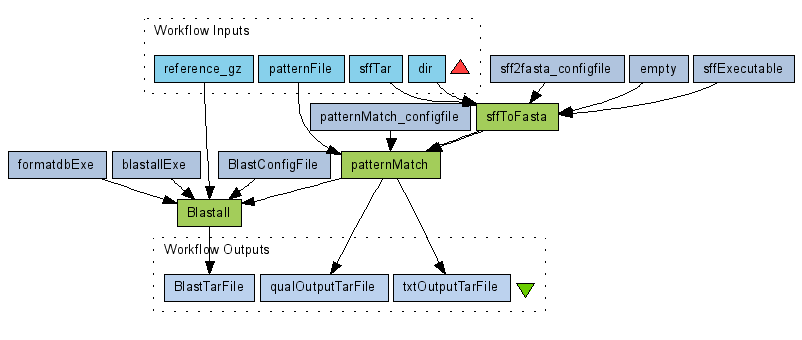

Preview

(Click on the image to get the full size)

Description

http://amc-app1.amc.sara.nl/twiki/bin/view/

Workflow-based DNA sequence analysis on the Dutch Life Science Grid,
presented as Application Showcase at the NBIC Conference 2009, Lunteren, The Netherlands, 17 & 18 March 2009.

http://www.biomedgrid.it/programme
may 15th 2009. Hands on workflow: grid-enabled medical imaging (Johan Montagnat – Tristan Glatard)

Download

Download Workflow File/Package (SCUFL)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Launch in Taverna

Note: you need to have both the WHIP Launcher and the Taverna myExperiment/WHIP plugin installed on your machine for this to work. See here for information.

Option 2:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/840/download?version=1
[ More Info Expand ]

Workflow Components

Inputs (3)

Name	Description
sffTar
patternFile
reference_gz

Processors (10)

Name	Type	Description
empty	stringconstant
BlastConfigFile	stringconstant
patternMatch_configfile	stringconstant
sff2fasta_configfile	stringconstant
patternMatch	arbitrarywsdl	Service definition of function ns__GASWexecution
sffToFasta	arbitrarywsdl	Service definition of function ns__GASWexecution
Blastall	arbitrarywsdl	Service definition of function ns__GASWexecution
sffExecutable	stringconstant
formatdbExe	stringconstant
blastallExe	stringconstant

Beanshells (0)

Outputs (3)

Name	Description
BlastTarFile
qualOutputTarFile
txtOutputTarFile

Links (16)

Source	Sink
patternFile	patternMatch:input2
blastallExe:value	Blastall:input1
empty:value	sffToFasta:command-line
formatdbExe:value	Blastall:input2
patternMatch_configfile:value	patternMatch:config-file
reference_gz	Blastall:input3
sff2fasta_configfile:value	sffToFasta:config-file
sffTar	sffToFasta:input0
BlastConfigFile:value	Blastall:config-file
patternMatch:result0	Blastall:input0
sffExecutable:value	sffToFasta:input1
sffToFasta:result0	patternMatch:input0
sffToFasta:result1	patternMatch:input1
Blastall:result0	BlastTarFile
patternMatch:result1	qualOutputTarFile
patternMatch:result2	txtOutputTarFile

Coordinations (0)

Information Workflow Type

Taverna 1

Information Original Uploader

Angela Luijf

Information License

All versions of this Workflow are licensed under:

Information Credits (2)

(People/Groups)

Information Attributions (0)

(Workflows/Files)

None

Information Tags (5)

Original Uploader tags

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Ratings (0)

Current:

0.0 / 5

(0 ratings)

Log in to rate and see breakdown of ratings

Information Attributed By (1)

(Workflows/Files)

DNA sequence analysis pilot (Blat)

Information Favourited By (1)

GentleYang

Information Statistics

1024 viewings

609 downloads

[ see breakdown ]

Citations (0)

None

Version History

Earliest Version:
[1] - DNA sequence analysis pilot

Created on: Friday 10 July 2009 @ 14:31:27 (GMT)

Created by: Angela Luijf

Last edited on: Monday 30 November 2009 @ 09:37:39 (GMT)

Last edited by: Angela Luijf

Revision comments:

None

This Workflow only has one version.

Reviews (0)

No reviews yet

Be the first to review!

Comments (1)

View Timeline

Log in to make a comment

Paul Fisher

Hi,

I just noticed this was a scufl workflow, which appears to be a Taverna workflow. Is that the case? If so, it may be worth while to also tag it as a Taverna (1 or 2) workflow to increase its exposure.

regards,

Paul.
