Workflow Entry: MY_Multi_Alignment_Phylo

Created at: 03/11/09 @ 14:46:38

Version 1 (of 1)

Version created on: 03/11/09 @ 14:46:46 by: Achille Zappa | Revision comments Expand

Title: MY_Multi_Alignment_Phylo

Type: Taverna 1

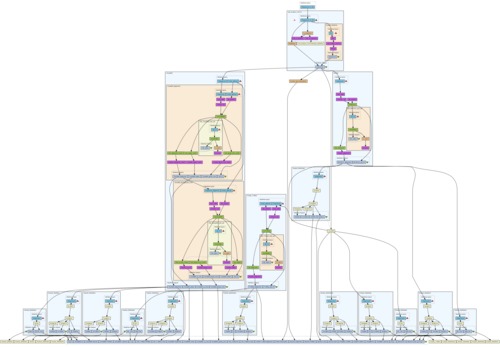

Preview

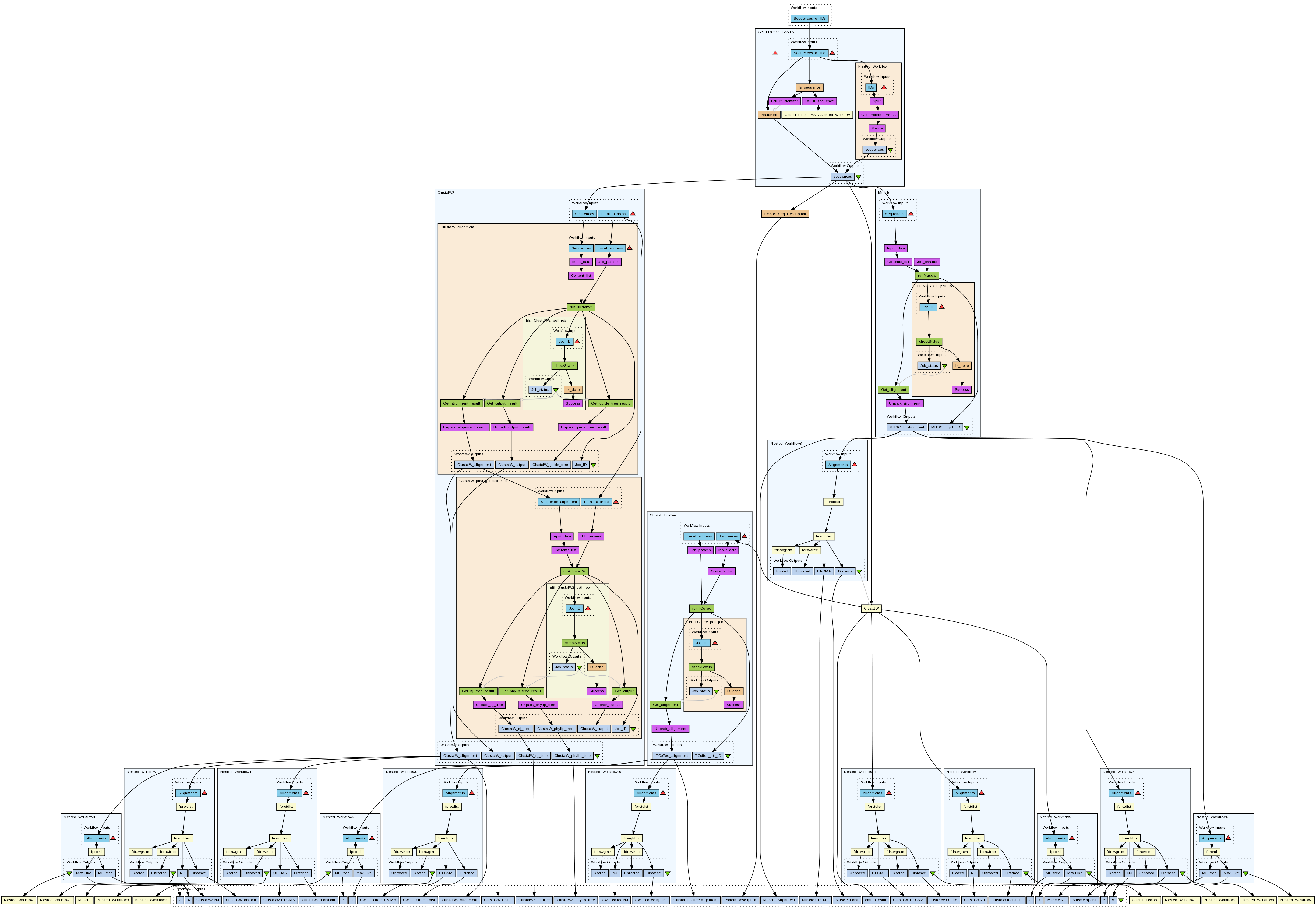

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

This workflow performs a 'multiple' multiple sequence alignment and phylogenetic analysis.

Download

Download Workflow File/Package (SCUFL)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Launch in Taverna

Note: you need to have both the WHIP Launcher and the Taverna myExperiment/WHIP plugin installed on your machine for this to work. See here for information.

Option 2:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/939/download?version=1
[ More Info Expand ]

Workflow Components

Inputs (1)

Name	Description
Sequences_or_IDs

Processors (18)

Name	Type	Description
Extract_Seq_Description	beanshell
Get_Proteins_FASTA	workflow	Given a sequence or sequence entry identifer return the sequence in fasta format. If a sequence identifier is input the EBI's WSDbfetch web service (see http://www.ebi.ac.uk/Tools/webservices/services/dbfetch) is used to retrive the sequence in fasta format. Otherwise the input is assumed to be a sequence and if passed through the Soaplab EMBOSS seqret service to force the sequence into fasta format.
ClustalW2	workflow	Given a set of sequences perform an multiple sequence alignment and from the multiple alignment derive a phylogenetic tree. The popular ClustalW program (see http://www.clustal.org/), as implemented in the EBI's WSClustalW2 service (see http://www.ebi.ac.uk/Tools/webservices/services/clustalw2) is used to perform both tasks.
Clustal_Tcoffee	workflow	Perform a multiple sequence alignment using T-Coffee (see http://www.tcoffee.org/). The EBI's WSToffee web service (see http://www.ebi.ac.uk/Tools/webservices/services/tcoffee) ise used.
Muscle	workflow	Perform a multiple sequence alignment using the MUSCLE tool (see http://www.drive5.com/muscle/). The EBI's WSMuscle web service (see http://www.ebi.ac.uk/Tools/webservices/services/muscle) is used.
Nested_Workflow4	workflow
Nested_Workflow5	workflow
ClustalW	soaplabwsdl	Multiple alignment program - interface to ClustalW program
Nested_Workflow6	workflow
Nested_Workflow10	workflow
Nested_Workflow8	workflow
Nested_Workflow3	workflow
Nested_Workflow1	workflow	This workflow performs a generic protein sequence analysis. In order to do that a novel protein sequence enters into the software along with a list of known protein identifiers chosen by the biologist to perform a homology search, followed by a multiple sequence alignment and finally a phylogenetic analysis.
Nested_Workflow2	workflow	This workflow performs a generic protein sequence analysis. In order to do that a novel protein sequence enters into the software along with a list of known protein identifiers chosen by the biologist to perform a homology search, followed by a multiple sequence alignment and finally a phylogenetic analysis.
Nested_Workflow9	workflow
Nested_Workflow11	workflow
Nested_Workflow	workflow	This workflow performs a generic protein sequence analysis. In order to do that a novel protein sequence enters into the software along with a list of known protein identifiers chosen by the biologist to perform a homology search, followed by a multiple sequence alignment and finally a phylogenetic analysis.
Nested_Workflow7	workflow

Beanshells (7)

Name	Description	Inputs	Outputs
Beanshell		in	out
Is_sequence	Return true if the input is a sequence or false if the input is a sequence identifer (e.g. uniprot:wap_rat).	sequence	is_sequence
Is_done	Map job status into true/false is done flag	job_status	is_done
Is_done	Map job status into true/false is done flag	job_status	is_done
Is_done	Map job status to true/false	job_status	is_done
Is_done	Convert status code into true/false.	job_status	is_done
Extract_Seq_Description		Sequences	result

Outputs (32)

Name	Description
Protein Description
ClustalW_UPGMA
Distance Outfile
Muscle_Alignment
ClustalW2 result
ClustalW2 Alignment
ClustalW2_phylip_tree
emma result
Clustal T-coffee alignment
ClustalW2_nj_tree
ClustalW2 NJ
ClustalW2 dist-out
ClustalW2 UPGMA
ClustalW2 u-dist-out
ClustalW NJ
ClustalW n-dist-out
1
2
3
4
6
7
8
5
Muscle UPGMA
Muscle u-dist
Muscle NJ
Muscle nj-dist
CW_T-coffee UPGMA
CW_T-coffee u-dist
CW_Tcoffee NJ
CW_Tcoffee nj-dist

Links (50)

Source	Sink
ClustalW2:ClustalW_alignment	Nested_Workflow1:Alignments
ClustalW2:ClustalW_alignment	Nested_Workflow3:Alignments
ClustalW2:ClustalW_alignment	Nested_Workflow:Alignments
ClustalW:outseq	Clustal_Tcoffee:Sequences
ClustalW:outseq	Nested_Workflow11:Alignments
ClustalW:outseq	Nested_Workflow2:Alignments
ClustalW:outseq	Nested_Workflow5:Alignments
Sequences_or_IDs	Get_Proteins_FASTA:Sequences_or_IDs
Clustal_Tcoffee:TCoffee_alignment	Nested_Workflow10:Alignments
Clustal_Tcoffee:TCoffee_alignment	Nested_Workflow6:Alignments
Clustal_Tcoffee:TCoffee_alignment	Nested_Workflow9:Alignments
Get_Proteins_FASTA:sequences	ClustalW2:Sequences
Get_Proteins_FASTA:sequences	ClustalW:sequence_direct_data
Get_Proteins_FASTA:sequences	Extract_Seq_Description:Sequences
Get_Proteins_FASTA:sequences	Muscle:Sequences
Muscle:MUSCLE_alignment	Nested_Workflow7:Alignments
ClustalW2:ClustalW_alignment	ClustalW2 Alignment
ClustalW2:ClustalW_nj_tree	ClustalW2_nj_tree
ClustalW2:ClustalW_output	ClustalW2 result
ClustalW2:ClustalW_phylip_tree	ClustalW2_phylip_tree
ClustalW:outseq	emma result
Clustal_Tcoffee:TCoffee_alignment	Clustal T-coffee alignment
Extract_Seq_Description:result	Protein Description
Muscle:MUSCLE_alignment	Muscle_Alignment
Muscle:MUSCLE_alignment	Nested_Workflow4:Alignments
Muscle:MUSCLE_alignment	Nested_Workflow8:Alignments
Nested_Workflow10:Distance	CW_Tcoffee nj-dist
Nested_Workflow10:NJ	CW_Tcoffee NJ
Nested_Workflow11:Distance	Distance Outfile
Nested_Workflow11:UPGMA	ClustalW_UPGMA
Nested_Workflow1:Distance	ClustalW2 u-dist-out
Nested_Workflow1:UPGMA	ClustalW2 UPGMA
Nested_Workflow2:Distance	ClustalW n-dist-out
Nested_Workflow2:NJ	ClustalW NJ
Nested_Workflow3:ML_tree	4
Nested_Workflow3:Max-Like	3
Nested_Workflow4:ML_tree	6
Nested_Workflow4:Max-Like	5
Nested_Workflow5:ML_tree	8
Nested_Workflow5:Max-Like	7
Nested_Workflow6:ML_tree	2
Nested_Workflow6:Max-Like	1
Nested_Workflow7:Distance	Muscle nj-dist
Nested_Workflow7:NJ	Muscle NJ
Nested_Workflow8:Distance	Muscle u-dist
Nested_Workflow8:UPGMA	Muscle UPGMA
Nested_Workflow9:Distance	CW_T-coffee u-dist
Nested_Workflow9:UPGMA	CW_T-coffee UPGMA
Nested_Workflow:Distance	ClustalW2 dist-out
Nested_Workflow:NJ	ClustalW2 NJ

Coordinations (11)

Controller	Target
Nested_Workflow3	Nested_Workflow
Nested_Workflow	Nested_Workflow1
Nested_Workflow1	Muscle
Nested_Workflow4	Nested_Workflow7
Nested_Workflow7	Nested_Workflow8
Nested_Workflow8	ClustalW
Nested_Workflow5	Nested_Workflow2
Nested_Workflow2	Nested_Workflow11
Nested_Workflow11	Clustal_Tcoffee
Nested_Workflow6	Nested_Workflow9
Nested_Workflow9	Nested_Workflow10

Information Workflow Type

Taverna 1

Information Original Uploader

Achille Zappa

Information License

All versions of this Workflow are licensed under:

Information Credits (1)

(People/Groups)

Achille Zappa

Information Attributions (0)

(Workflows/Files)

None

Information Tags (7)

Original Uploader tags

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Ratings (0)

Current:

0.0 / 5

(0 ratings)

Log in to rate and see breakdown of ratings

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

561 viewings

548 downloads

[ see breakdown ]

Citations (0)

None

Version History

Earliest Version:
[1] - MY_Multi_Alignment_Phylo

Created on: Tuesday 03 November 2009 @ 14:46:46 (GMT)

Created by: Achille Zappa

Revision comments:

None

This Workflow only has one version.
