KEGG pathways common to both QTL and microarray based investigations

Workflow Entry: KEGG pathways common to both QTL and microarray based investigations

Created at: 15/11/10 @ 12:30:21 Last updated: 15/11/10 @ 12:30:59

Version 1 (of 1)

Version created on: 15/11/10 @ 12:30:21 by: Paul Fisher | Revision comments Expand

Last edited on: 15/11/10 @ 12:30:59 by: Paul Fisher

Title: KEGG pathways common to both QTL and microarray based investigations

Type: Taverna 2

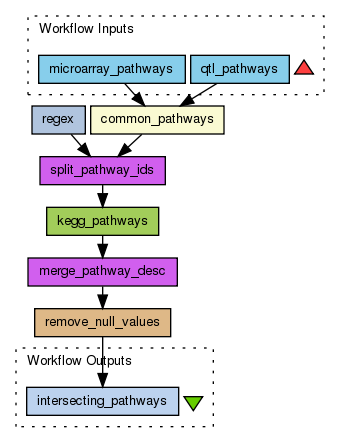

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

This workflow takes in two lists of KEGG pathway ids. These are designed to come from pathways found from genes in a QTL (Quantitative Trait Loci) region, and from pathways found from genes differentially expressed in a microarray study. By identifying the intersecting pathways from both studies, a more informative picture is obtained of the candidate processes involved in the expression of a phenotype

Download

Download Workflow File/Package (T2FLOW)

Download Workflow as a Galaxy tool

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/1663/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Inputs (2)

Name	Description
qtl_pathways
microarray_pathways

Processors (6)

Name	Type	Description
regex	stringconstant
common_pathways	soaplab
remove_null_values	beanshell
kegg_pathways	wsdl	See the Service entry for this web service.
merge_pathway_desc	localworker
split_pathway_ids	localworker

Beanshells (1)

Name	Description	Inputs	Outputs
remove_null_values		input	output

Outputs (1)

Name	Description
intersecting_pathways

Datalinks (8)

Source	Sink
qtl_pathways	common_pathways:qtl_pathways_direct_data
microarray_pathways	common_pathways:microarray_pathways_direct_data
merge_pathway_desc:concatenated	remove_null_values:input
split_pathway_ids:split	kegg_pathways:string
kegg_pathways:return	merge_pathway_desc:stringlist
common_pathways:output	split_pathway_ids:string
regex:value	split_pathway_ids:regex
remove_null_values:output	intersecting_pathways

Coordinations (0)

Information Workflow Type

Taverna 2

Information Original Uploader

Paul Fisher

Information License

All versions of this Workflow are licensed under:

Information Credits (1)

(People/Groups)

Paul Fisher

Information Attributions (0)

(Workflows/Files)

None

Information Tags (21)

Original Uploader tags

Log in to add Tags

Information Shared with Groups (1)

PhD Supplementary Information

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Ratings (0)

Current:

0.0 / 5

(0 ratings)

Log in to rate and see breakdown of ratings

Information Attributed By (2)

(Workflows/Files)

Trichuriasis Induced Colitis
Item doesn't exist anymore

Information Favourited By (0)

No one

Information Statistics

115 viewings

322 downloads

[ see breakdown ]

Citations (0)

None

Version History

Earliest Version:
[1] - KEGG pathways common to both QTL and microarray based investigations

Created on: Monday 15 November 2010 @ 12:30:21 (GMT)

Created by: Paul Fisher

Last edited on: Monday 15 November 2010 @ 12:30:59 (GMT)

Last edited by: Paul Fisher

Revision comments:

None

This Workflow only has one version.
