Workflow Entry: fetchEnsemblSeqsAndBlast

Created at: 18/04/08 @ 11:53:19 Last updated: 18/04/08 @ 11:58:30

Version 1 (of 1)

Version created on: 18/04/08 @ 11:53:19 by: Bela | Revision comments Expand

Last edited on: 18/04/08 @ 11:58:30 by: Bela

Title: fetchEnsemblSeqsAndBlast

Type: Taverna 1

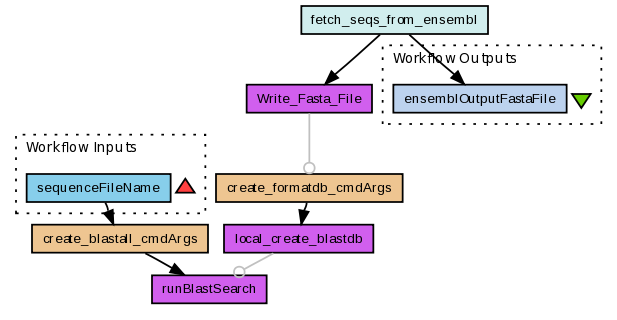

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

This workflow allows you to configure a BioMart query to fetch sequences you want from Ensembl. These sequences are retrieved and a blast database of them is created (by default, in the directory you ran taverna from).

Warning: This workflow assumes that you have blastall and formatdb installed on the machine, and that by default, these are both found or linked in /usr/local/bin. It also assumes that you have write permission to the directory you have run taverna from. The beanshells "create_blastall_cmdArgs" and "create_formatdb_cmdArgs" are what you need to edit if the default locations are not appropriate for you.

Shortcomings:

The names of all the files created and used is hard coded in this workflow. This means that if you run this workflow more than once without editing anything, you will overwrite files you have previously created.

All files created in the working directory are not yet coded to be deleted via the workflow. Ideally there would be an option that a user could choose that would set the files to be kept or deleted after use.

Download

Download Workflow File/Package (SCUFL)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Launch in Taverna

Note: you need to have both the WHIP Launcher and the Taverna myExperiment/WHIP plugin installed on your machine for this to work. See here for information.

Option 2:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/182/download?version=1
[ More Info Expand ]

Workflow Components

Inputs (1)

Name	Description
sequenceFileName	Provide the name, and if not in your working directory, the location of the file of fasta sequence(s) that you wish to use to search the blast database created in this workflow.

Processors (6)

Name	Type	Description
local_create_blastdb	local
runBlastSearch	local	This runs the blastall command (NCBI blast) on your local machine. This means you need to have blastall installed. The location provided is /usr/local/bin/blastall, so if your executable is not in that location, you will need to edit this. If you are working on a Bio-Linux machine, this should work for you without change. Note that the blast results are written to your hard disk in the working directory by default. Edit the location indicated in the create_blastall_cmdArgs beanshell in the line after the one adding "-o" if you are not happy with this.
create_blastall_cmdArgs	beanshell	This beanshell creates an array of strings (a list of plain text), with each element containing one element of the arguments for the blastall command line. For the familiar blastall command line arguments to be put together in such a way that this the runBlastSearch processor will understand them, they need to have the flag added as a separate element in the list, right before its argument. Note the defaults are probably not what you want - you need to edit them! You can also add additional arguments by configuring the beanshell. For example, to indicate that you wish to limit the hits reported to just those with e-values below 0.1, you would add the following text to the bottom of the beanshell: cmdArgsList.add("-e"); cmdArgsList.add("0.1");
create_formatdb_cmdArgs	beanshell	This beanshell will not be run until after the fasta file is written from the Write_Fasta_File processor. This beanshell creates an array of strings (a list of plain text), with each element containing one element of the arguments for the formatdb command line. Note that you can change the text in the beanshell in the element in the line after the one containing "-n" to set the name of the blast database you want. If you want to add any other command line arguments, follow the system in the beanshell. E.g. add the flag, e.g. "-x" in one line, and its argument "somethingOrOther" in another line.
fetch_seqs_from_ensembl	biomart	By default, this is set up to collect sequences for Danio rerio genes (ZFISH7). Of course, you can configure it for whatever you want to get from ensembl.
Write_Fasta_File	local	This processor writes the fasta sequences retrieved by the fetch_seqs_from_ensembl processor to a file on the hard drive (in the working directory). This is necessary for running formatdb on the command line.

Beanshells (2)

Name	Description	Inputs	Outputs
create_blastall_cmdArgs	This beanshell creates an array of strings (a list of plain text), with each element containing one element of the arguments for the blastall command line. For the familiar blastall command line arguments to be put together in such a way that this the runBlastSearch processor will understand them, they need to have the flag added as a separate element in the list, right before its argument. Note the defaults are probably not what you want - you need to edit them! You can also add additional arguments by configuring the beanshell. For example, to indicate that you wish to limit the hits reported to just those with e-values below 0.1, you would add the following text to the bottom of the beanshell: cmdArgsList.add("-e"); cmdArgsList.add("0.1");	sequenceFileName	cmdArgsList
create_formatdb_cmdArgs	This beanshell will not be run until after the fasta file is written from the Write_Fasta_File processor. This beanshell creates an array of strings (a list of plain text), with each element containing one element of the arguments for the formatdb command line. Note that you can change the text in the beanshell in the element in the line after the one containing "-n" to set the name of the blast database you want. If you want to add any other command line arguments, follow the system in the beanshell. E.g. add the flag, e.g. "-x" in one line, and its argument "somethingOrOther" in another line.		cmdArgsList

Outputs (1)

Name	Description
ensemblOutputFastaFile

Links (5)

Source	Sink
create_blastall_cmdArgs:cmdArgsList	runBlastSearch:args
create_formatdb_cmdArgs:cmdArgsList	local_create_blastdb:args
fetch_seqs_from_ensembl:drerio_gene_ensembl	Write_Fasta_File:filecontents
sequenceFileName	create_blastall_cmdArgs:sequenceFileName
fetch_seqs_from_ensembl:drerio_gene_ensembl	ensemblOutputFastaFile
