Pathways and Gene annotations forQTL region

Workflow Entry: Pathways and Gene annotations forQTL region

Created at: 24/03/11 @ 15:14:48 Last updated: 24/03/11 @ 15:37:48

Version 1 (of 1)

Version created on: 24/03/11 @ 15:14:48 by: Paul Fisher | Revision comments Expand

Last edited on: 24/03/11 @ 15:37:48 by: Paul Fisher

Title: Pathways and Gene annotations forQTL region

Type: Taverna 2

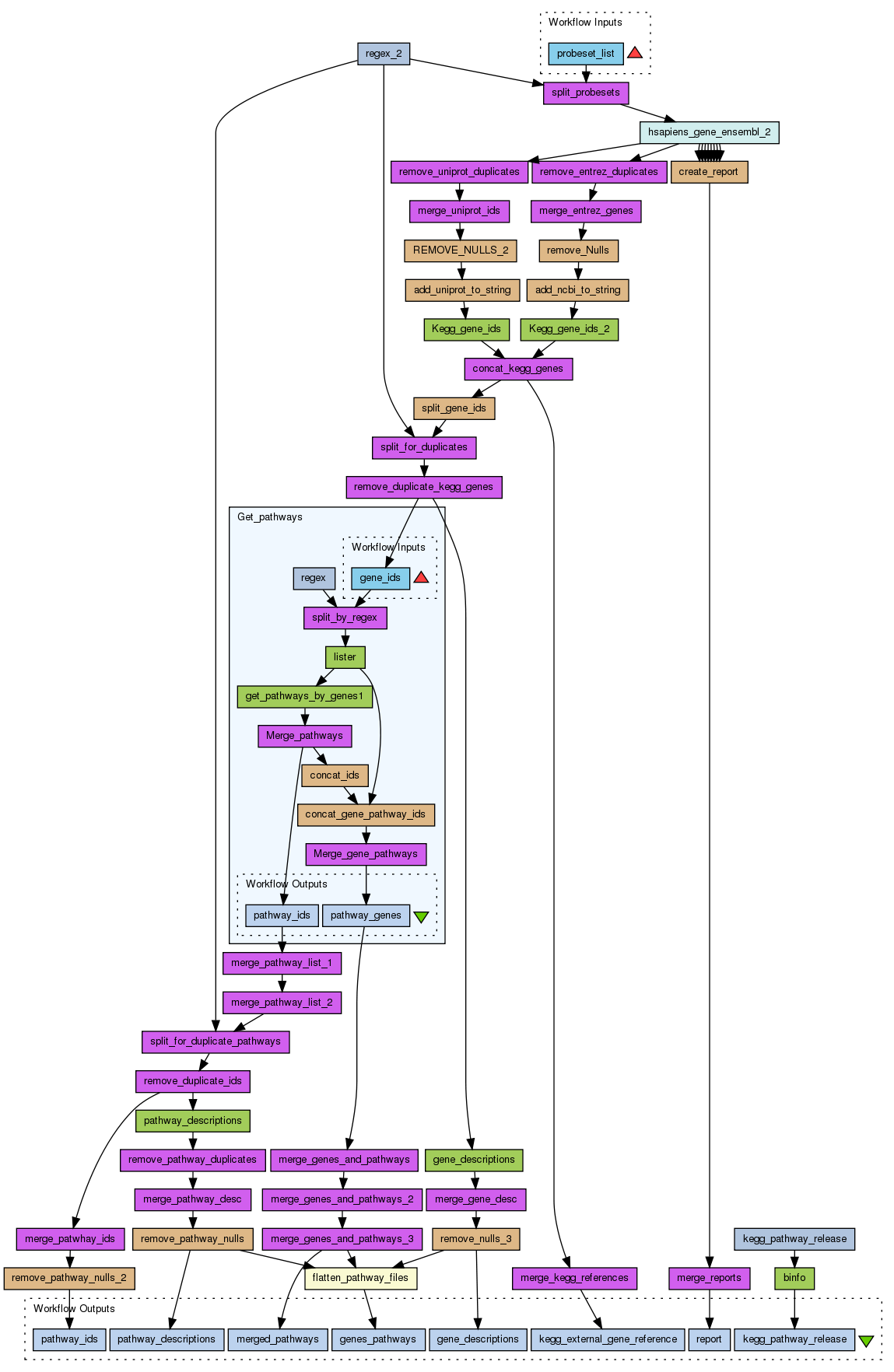

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

This workflow searches for genes found from a set of differentially expressed probestes, in Human, Homo sapiens. The workflow requires an input human affymetrix probeset identifiers. Data is then extracted from BioMart to annotate each of the genes found in this region. The Entrez and UniProt identifiers are then sent to KEGG to obtain KEGG gene identifiers. The KEGG gene identifiers are then used to searcg for pathways in the KEGG pathway database.

Download

Download Workflow File/Package (T2FLOW)

Download Workflow as a Galaxy tool

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/1977/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (2)

Inputs (1)

Name	Description
probeset_list

Processors (40)

Name	Type	Description
regex_2	stringconstant
merge_kegg_references	localworker
split_for_duplicate_pathways	localworker
merge_uniprot_ids	localworker
REMOVE_NULLS_2	beanshell
merge_entrez_genes	localworker
split_gene_ids	beanshell
merge_genes_and_pathways_3	localworker
remove_uniprot_duplicates	localworker
merge_pathway_list_1	localworker
remove_Nulls	beanshell
merge_gene_desc	localworker
merge_genes_and_pathways	localworker
binfo	wsdl	See the Service entry for this web service.
remove_pathway_nulls_2	beanshell
kegg_pathway_release	stringconstant
merge_pathway_list_2	localworker
concat_kegg_genes	localworker
remove_pathway_nulls	beanshell
add_uniprot_to_string	beanshell
create_report	beanshell
pathway_descriptions	wsdl	See the Service entry for this web service.
Kegg_gene_ids	wsdl	See the Service entry for this web service.
add_ncbi_to_string	beanshell
merge_patwhay_ids	localworker
merge_pathway_desc	localworker
remove_duplicate_kegg_genes	localworker
remove_duplicate_ids	localworker
gene_descriptions	wsdl	See the Service entry for this web service.
split_for_duplicates	localworker
remove_pathway_duplicates	localworker
merge_reports	localworker
remove_entrez_duplicates	localworker
merge_genes_and_pathways_2	localworker
remove_nulls_3	beanshell
Kegg_gene_ids_2	wsdl	See the Service entry for this web service.
Get_pathways	workflow
flatten_pathway_files	soaplab
hsapiens_gene_ensembl_2	biomart
split_probesets	localworker

Beanshells (11)

Name	Inputs	Outputs
REMOVE_NULLS_2	input	output
split_gene_ids	input	output
remove_Nulls	input	output
remove_pathway_nulls_2	input	output
remove_pathway_nulls	input	output
add_uniprot_to_string	input	output
create_report	ensemblGene_Id entrezGeneId externalGeneId chromoName geneStart geneEnd ensemblTranscriptId uniprotAcc	result
add_ncbi_to_string	input	output
remove_nulls_3	input	output
concat_gene_pathway_ids	pathway_ids gene_id	output
concat_ids	input	output

Outputs (8)

Name	Description
merged_pathways
gene_descriptions
pathway_descriptions
kegg_pathway_release
report
kegg_external_gene_reference
pathway_ids
genes_pathways

Datalinks (59)

Source	Sink
concat_kegg_genes:output	merge_kegg_references:stringlist
regex_2:value	split_for_duplicate_pathways:regex
merge_pathway_list_2:concatenated	split_for_duplicate_pathways:string
remove_uniprot_duplicates:strippedlist	merge_uniprot_ids:stringlist
merge_uniprot_ids:concatenated	REMOVE_NULLS_2:input
remove_entrez_duplicates:strippedlist	merge_entrez_genes:stringlist
concat_kegg_genes:output	split_gene_ids:input
merge_genes_and_pathways_2:concatenated	merge_genes_and_pathways_3:stringlist
hsapiens_gene_ensembl_2:hsapiens_gene_ensembl.uniprot_swissprot_accession	remove_uniprot_duplicates:stringlist
Get_pathways:pathway_ids	merge_pathway_list_1:stringlist
merge_entrez_genes:concatenated	remove_Nulls:input
gene_descriptions:return	merge_gene_desc:stringlist
Get_pathways:pathway_genes	merge_genes_and_pathways:stringlist
kegg_pathway_release:value	binfo:db
merge_patwhay_ids:concatenated	remove_pathway_nulls_2:input
merge_pathway_list_1:concatenated	merge_pathway_list_2:stringlist
Kegg_gene_ids:return	concat_kegg_genes:string1
Kegg_gene_ids_2:return	concat_kegg_genes:string2
merge_pathway_desc:concatenated	remove_pathway_nulls:input
REMOVE_NULLS_2:output	add_uniprot_to_string:input
hsapiens_gene_ensembl_2:hsapiens_gene_ensembl.entrezgene	create_report:entrezGeneId
hsapiens_gene_ensembl_2:hsapiens_gene_ensembl.external_gene_id	create_report:externalGeneId
hsapiens_gene_ensembl_2:hsapiens_gene_ensembl.start_position	create_report:geneStart
hsapiens_gene_ensembl_2:hsapiens_gene_ensembl.uniprot_swissprot_accession	create_report:uniprotAcc
hsapiens_gene_ensembl_2:hsapiens_gene_ensembl.ensembl_transcript_id	create_report:ensemblTranscriptId
hsapiens_gene_ensembl_2:hsapiens_gene_ensembl.ensembl_gene_id	create_report:ensemblGene_Id
hsapiens_gene_ensembl_2:hsapiens_gene_ensembl.chromosome_name	create_report:chromoName
hsapiens_gene_ensembl_2:hsapiens_gene_ensembl.end_position	create_report:geneEnd
remove_duplicate_ids:strippedlist	pathway_descriptions:string
add_uniprot_to_string:output	Kegg_gene_ids:string
remove_Nulls:output	add_ncbi_to_string:input
remove_duplicate_ids:strippedlist	merge_patwhay_ids:stringlist
remove_pathway_duplicates:strippedlist	merge_pathway_desc:stringlist
split_for_duplicates:split	remove_duplicate_kegg_genes:stringlist
split_for_duplicate_pathways:split	remove_duplicate_ids:stringlist
remove_duplicate_kegg_genes:strippedlist	gene_descriptions:string
regex_2:value	split_for_duplicates:regex
split_gene_ids:output	split_for_duplicates:string
pathway_descriptions:return	remove_pathway_duplicates:stringlist
create_report:result	merge_reports:stringlist
hsapiens_gene_ensembl_2:hsapiens_gene_ensembl.entrezgene	remove_entrez_duplicates:stringlist
merge_genes_and_pathways:concatenated	merge_genes_and_pathways_2:stringlist
merge_gene_desc:concatenated	remove_nulls_3:input
add_ncbi_to_string:output	Kegg_gene_ids_2:string
remove_duplicate_kegg_genes:strippedlist	Get_pathways:gene_ids
remove_pathway_nulls:output	flatten_pathway_files:pathway_descriptions_direct_data
remove_nulls_3:output	flatten_pathway_files:gene_descriptions_direct_data
merge_genes_and_pathways_3:concatenated	flatten_pathway_files:merged_pathways_direct_data
split_probesets:split	hsapiens_gene_ensembl_2:hsapiens_gene_ensembl.ensembl_gene_id_filter
probeset_list	split_probesets:string
regex_2:value	split_probesets:regex
merge_genes_and_pathways_3:concatenated	merged_pathways
remove_nulls_3:output	gene_descriptions
remove_pathway_nulls:output	pathway_descriptions
binfo:return	kegg_pathway_release
merge_reports:concatenated	report
merge_kegg_references:concatenated	kegg_external_gene_reference
remove_pathway_nulls_2:output	pathway_ids
flatten_pathway_files:output	genes_pathways

Coordinations (0)

Information Workflow Type

Taverna 2

Information Original Uploader

Paul Fisher

Information License

All versions of this Workflow are licensed under:

Information Credits (1)

(People/Groups)

Paul Fisher

Information Attributions (0)

(Workflows/Files)

None

Information Tags (12)

Original Uploader tags

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Ratings (0)

Current:

0.0 / 5

(0 ratings)

Log in to rate and see breakdown of ratings

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

95 viewings

273 downloads

[ see breakdown ]

Citations (0)

None

Version History

Earliest Version:
[1] - Pathways and Gene annotations forQTL region

Created on: Thursday 24 March 2011 @ 15:14:48 (GMT)

Created by: Paul Fisher

Last edited on: Thursday 24 March 2011 @ 15:37:48 (GMT)

Last edited by: Paul Fisher

Revision comments:

None

This Workflow only has one version.
