Download Structures from PubChem given chemical names

Workflow Entry: Download Structures from PubChem given chemical names

Created at: 24/05/11 @ 13:13:52 Last updated: 24/05/11 @ 14:19:24

Version 1 (of 1)

Version created on: 24/05/11 @ 13:13:52 by: Kalai | Revision comments Expand

Last edited on: 24/05/11 @ 14:19:24 by: Kalai

Title: Download Structures from PubChem given chemical names

Type: Taverna 2

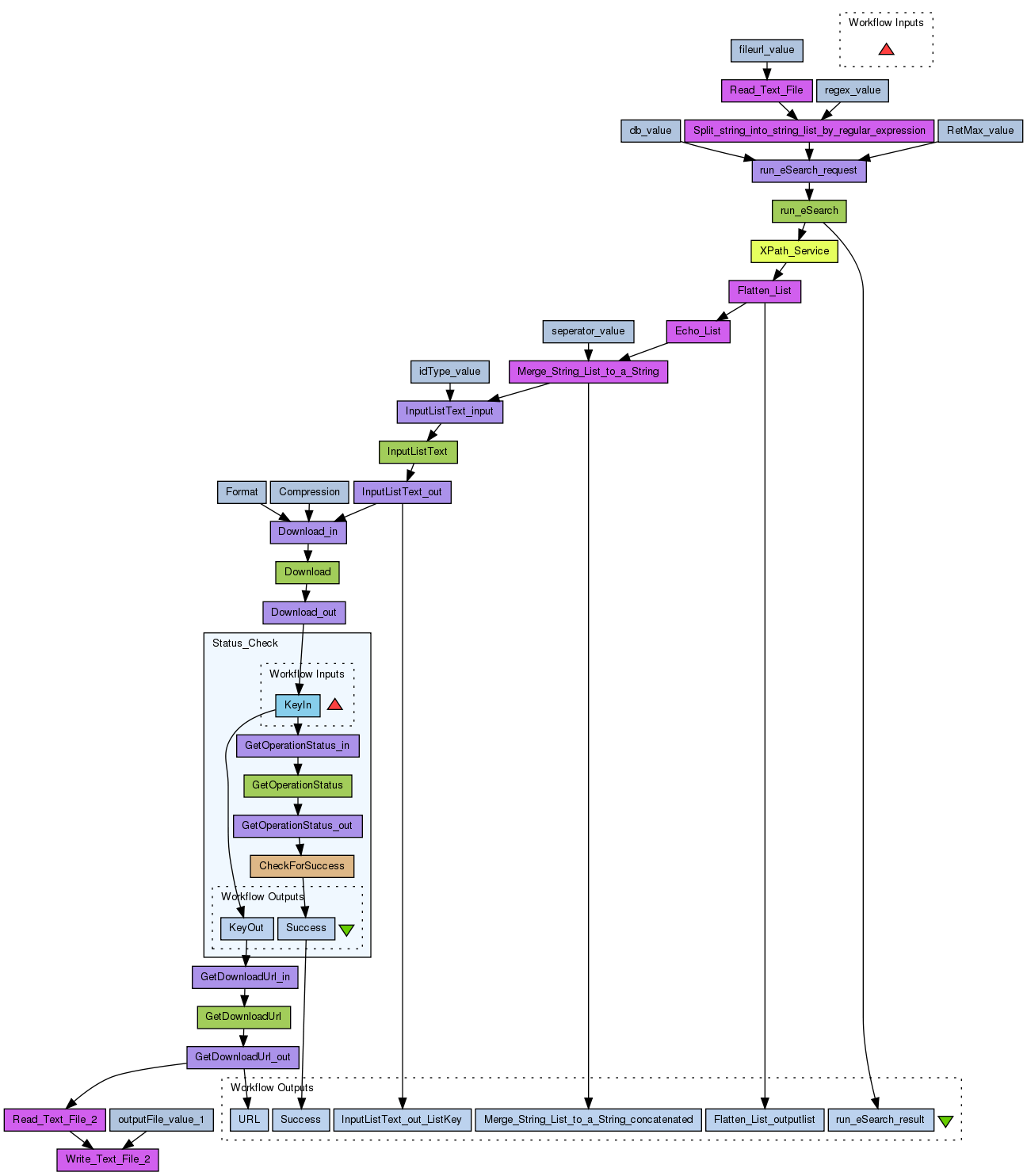

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

This workflow takes the input file containing chemical names and returns a single SDF file of structures. The names are searched against pubchem compounds via e-search.

If the compound name is found an XML file containing PubChem ID is returned.The max return compound_ID is set to 1 which could be increased. If the compound name is not found then no ID is returned.

The pubchem compound_ID is then used to download structures from PubChem.

Download

Download Workflow File/Package (T2FLOW)

Download Workflow as a Galaxy tool

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/2139/download?version=1
[ More Info Expand ]

Workflow Components

Authors (0)

Titles (0)

Descriptions (0)

Inputs (0)

Processors (29)

Name	Type	Description
run_eSearch	wsdl
run_eSearch_request	xmlsplitter
db_value	stringconstant
Read_Text_File	localworker
Split_string_into_string_list_by_regular_expression	localworker
regex_value	stringconstant
fileurl_value	stringconstant
RetMax_value	stringconstant
Flatten_List	localworker
idType_value	stringconstant
Download_out	xmlsplitter
GetDownloadUrl_out	xmlsplitter
Format	stringconstant
GetDownloadUrl	wsdl	See the Service entry for this web service.
Download	wsdl	See the Service entry for this web service.
InputListText_out	xmlsplitter
Compression	stringconstant
GetDownloadUrl_in	xmlsplitter
Download_in	xmlsplitter
Status_Check	workflow
Echo_List	localworker
Merge_String_List_to_a_String	localworker
seperator_value	stringconstant
InputListText	wsdl	See the Service entry for this web service.
InputListText_input	xmlsplitter
Write_Text_File_2	localworker
Read_Text_File_2	localworker
outputFile_value_1	stringconstant
XPath_Service	xpath

Beanshells (1)

Name	Description	Inputs	Outputs
CheckForSuccess		status	success

Outputs (6)

Name	Description
run_eSearch_result
Flatten_List_outputlist
URL
Success
InputListText_out_ListKey
Merge_String_List_to_a_String_concatenated

Datalinks (34)

Source	Sink
run_eSearch_request:output	run_eSearch:request
db_value:value	run_eSearch_request:db
Split_string_into_string_list_by_regular_expression:split	run_eSearch_request:term
RetMax_value:value	run_eSearch_request:RetMax
fileurl_value:value	Read_Text_File:fileurl
Read_Text_File:filecontents	Split_string_into_string_list_by_regular_expression:string
regex_value:value	Split_string_into_string_list_by_regular_expression:regex
XPath_Service:nodelist	Flatten_List:inputlist
Download:parameters	Download_out:input
GetDownloadUrl:parameters	GetDownloadUrl_out:input
GetDownloadUrl_in:output	GetDownloadUrl:parameters
Download_in:output	Download:parameters
InputListText:parameters	InputListText_out:input
Status_Check:KeyOut	GetDownloadUrl_in:DownloadKey
Format:value	Download_in:eFormat
Compression:value	Download_in:eCompress
InputListText_out:ListKey	Download_in:ListKey
Download_out:DownloadKey	Status_Check:KeyIn
Flatten_List:outputlist	Echo_List:inputlist
Echo_List:outputlist	Merge_String_List_to_a_String:stringlist
seperator_value:value	Merge_String_List_to_a_String:seperator
InputListText_input:output	InputListText:parameters
idType_value:value	InputListText_input:idType
Merge_String_List_to_a_String:concatenated	InputListText_input:ids
Read_Text_File_2:filecontents	Write_Text_File_2:filecontents
outputFile_value_1:value	Write_Text_File_2:outputFile
GetDownloadUrl_out:url	Read_Text_File_2:fileurl
run_eSearch:result	XPath_Service:xml_text
run_eSearch:result	run_eSearch_result
Flatten_List:outputlist	Flatten_List_outputlist
GetDownloadUrl_out:url	URL
Status_Check:Success	Success
InputListText_out:ListKey	InputListText_out_ListKey
Merge_String_List_to_a_String:concatenated	Merge_String_List_to_a_String_concatenated

Coordinations (0)

Information Workflow Type

Taverna 2

Information Original Uploader

Kalai

Information License

All versions of this Workflow are licensed under:

Information Credits (2)

(People/Groups)

Information Attributions (1)

(Workflows/Files)

Download Entries from PubChem

Information Tags (26)

Original Uploader tags

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Ratings (0)

Current:

0.0 / 5

(0 ratings)

Log in to rate and see breakdown of ratings

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

130 viewings

238 downloads

[ see breakdown ]

Citations (0)

None

Version History

Earliest Version:
[1] - Download Structures from PubChem given chemical names

Created on: Tuesday 24 May 2011 @ 13:13:52 (GMT)

Created by: Kalai

Last edited on: Tuesday 24 May 2011 @ 14:19:24 (GMT)

Last edited by: Kalai

Revision comments:

None

This Workflow only has one version.

Reviews (0)

No reviews yet

Be the first to review!

Comments (0)

View Timeline

No comments yet

Log in to make a comment
