Workflow Entry: Sequence_or_ID_or_GI

Created at: 07/06/08 @ 16:58:14

Version 1 (of 1)

Version created on: 07/06/08 @ 16:58:14 by: Hamish McWilliam | Revision comments Expand

Title: Sequence_or_ID_or_GI

Type: Taverna 1

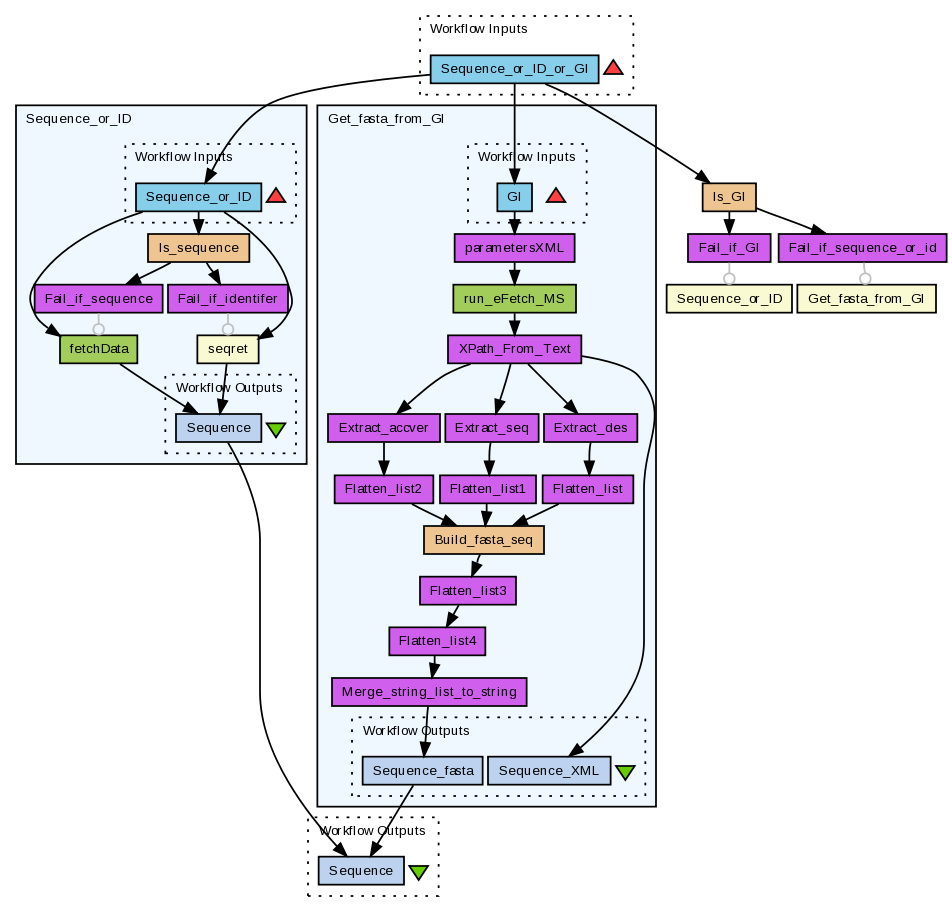

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

Get a sequence in fasta format given one of:

An NCBI GI number (e.g. 75251068).
An entry identifier in database:identifier format (e.g. uniprot:Q96247).

3. A sequence entry in a format supported by EMBOSS seqret.

Download

Download Workflow File/Package (SCUFL)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Launch in Taverna

Note: you need to have both the WHIP Launcher and the Taverna myExperiment/WHIP plugin installed on your machine for this to work. See here for information.

Option 2:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/232/download?version=1
[ More Info Expand ]

Workflow Components

Inputs (1)

Name	Description
Sequence_or_ID_or_GI	Input sequence, GI number or entry identifier.

Processors (5)

Name	Type	Description
Sequence_or_ID	workflow	Get fasta formated sequence for an entry identifer or a sequence entry.
Get_fasta_from_GI	workflow	Get the sequence in fasta format for a GI number.
Is_GI	beanshell	Is the input a GI number?
Fail_if_GI	local	Fail if the sequence is a GI number.
Fail_if_sequence_or_id	local	Fail is the sequence is not a GI number.

Beanshells (3)

Name	Description	Inputs	Outputs
Is_sequence	Return true if the input is a sequence or false if the input is a sequence identifer (e.g. uniprot:wap_rat).	sequence	is_sequence
Build_fasta_seq		accver des seq	fasta_seq
Is_GI	Is the input a GI number?	gi_id_seq	is_gi

Outputs (1)

Name	Description
Sequence	Sequence in fasta format.

Links (7)

Source	Sink
Sequence_or_ID_or_GI	Get_fasta_from_GI:GI
Sequence_or_ID_or_GI	Is_GI:gi_id_seq
Sequence_or_ID_or_GI	Sequence_or_ID:Sequence_or_ID
Is_GI:is_gi	Fail_if_GI:test
Is_GI:is_gi	Fail_if_sequence_or_id:test
Get_fasta_from_GI:Sequence_fasta	Sequence
Sequence_or_ID:Sequence	Sequence

Coordinations (2)

Controller	Target
Fail_if_GI	Sequence_or_ID
Fail_if_sequence_or_id	Get_fasta_from_GI

Information Workflow Type

Taverna 1

Information Original Uploader

Hamish McWilliam

Information License

All versions of this Workflow are licensed under:

Information Credits (1)

(People/Groups)

Hamish McWilliam

Information Attributions (1)

(Workflows/Files)

Structure_or_ID

Information Tags (9)

Original Uploader tags

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (1)

Private pack

Log in to add to one of your Packs

Information Ratings (0)

Current:

0.0 / 5

(0 ratings)

Log in to rate and see breakdown of ratings

Information Attributed By (1)

(Workflows/Files)

tRNAscan

Information Favourited By (0)

No one

Information Statistics

913 viewings

822 downloads

[ see breakdown ]

Citations (0)

None

Version History

Earliest Version:
[1] - Sequence_or_ID_or_GI

Created on: Saturday 07 June 2008 @ 16:58:14 (GMT)

Created by: Hamish McWilliam

Revision comments:

None

This Workflow only has one version.
