Workflow Entry: tRNAscan

Created at: 28/06/08 @ 09:57:33

Version 1 (of 1)

Version created on: 28/06/08 @ 09:57:33 by: Hamish McWilliam | Revision comments Expand

Title: tRNAscan

Type: Taverna 1

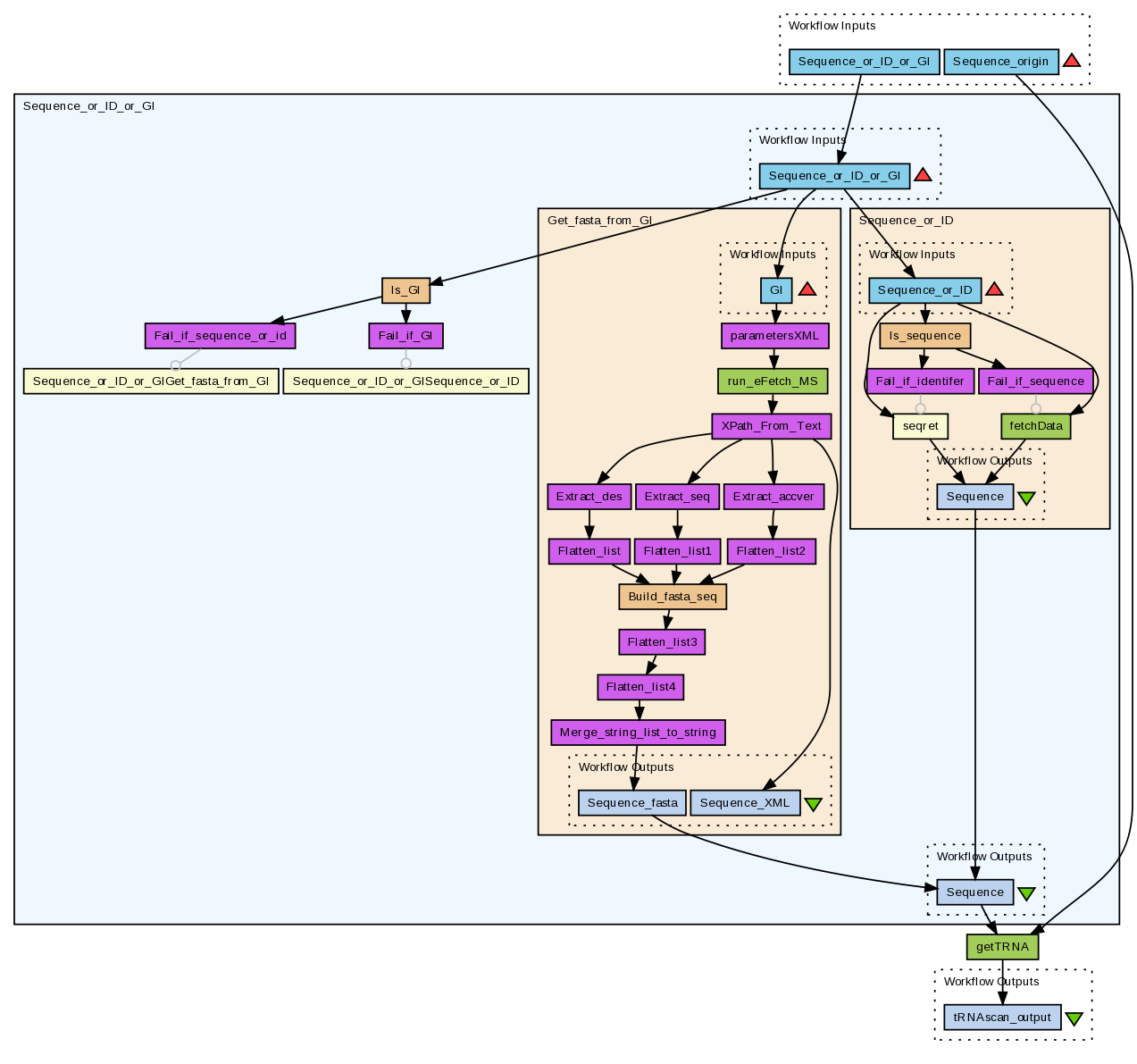

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

Search a nucleotide sequence for tRNA genes using the tRNAscan-SE tool (see http://wiki.bioinformatics.org/TRNAscan-SE).

This workflow uses the tRNAscan service at VBI PathPort (see http://pathport.vbi.vt.edu/services/#predict_7).

Download

Download Workflow File/Package (SCUFL)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Launch in Taverna

Note: you need to have both the WHIP Launcher and the Taverna myExperiment/WHIP plugin installed on your machine for this to work. See here for information.

Option 2:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/245/download?version=1
[ More Info Expand ]

Workflow Components

Inputs (2)

Name	Description
Sequence_or_ID_or_GI	Input nucleotide sequence to search for tRNA genes. This can be one of: - Actual sequence (fasta format recommended) - Entry identifier in database:identifer format (e.g. EMBL:AB005233) - NCBI GI number (e.g. 2264305)
Sequence_origin	The tRNAscan tool needs to know the type of tRNA signature to search for (e.g. Eukaryotic tRNAs). Possible values are: - Eukaryotic tRNAs - Bacterial tRNAs - Eukaryotic tRNAs - Archaeal tRNAs - Mitochondrial/Chloroplast tRNAs - General tRNAs

Processors (2)

Name	Type	Description
getTRNA	arbitrarywsdl	Run tRNAscan.
Sequence_or_ID_or_GI	workflow	Get a fasta formated sequence for one of: 1. Actual sequence in an EMBOSS supported format (see http://emboss.sourceforge.net/docs/themes/SequenceFormats.html#in). 2. Sequence entry identifer in database:identifer format. Retreived using EBI's WSDbfetch service (see http://www.ebi.ac.uk/Tools/webservices/services/dbfetch). 3. An NCBI GI number. Retrived using NCBI's eUtils web service (see http://www.ncbi.nlm.nih.gov/entrez/query/static/eutils_help.html)

Beanshells (3)

Name	Description	Inputs	Outputs
Build_fasta_seq		accver des seq	fasta_seq
Is_sequence	Return true if the input is a sequence or false if the input is a sequence identifer (e.g. uniprot:wap_rat).	sequence	is_sequence
Is_GI	Is the input a GI number?	gi_id_seq	is_gi

Outputs (1)

Name	Description
tRNAscan_output	The tRNAscan result in the DAS XML format (see http://www.biodas.org/documents/spec.html).

Links (4)

Source	Sink
Sequence_or_ID_or_GI	Sequence_or_ID_or_GI:Sequence_or_ID_or_GI
Sequence_or_ID_or_GI:Sequence	getTRNA:in0
Sequence_origin	getTRNA:in1
getTRNA:getTRNAReturn	tRNAscan_output

Coordinations (0)

Information Workflow Type

Taverna 1

Information Original Uploader

Hamish McWilliam

Information License

All versions of this Workflow are licensed under:

Information Credits (1)

(People/Groups)

Hamish McWilliam

Information Attributions (1)

(Workflows/Files)

Sequence_or_ID_or_GI

Information Tags (6)

Original Uploader tags

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (2)

Private pack
Private pack

Log in to add to one of your Packs

Information Ratings (0)

Current:

0.0 / 5

(0 ratings)

Log in to rate and see breakdown of ratings

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

733 viewings

860 downloads

[ see breakdown ]

Citations (0)

None

Version History

Earliest Version:
[1] - tRNAscan

Created on: Saturday 28 June 2008 @ 09:57:33 (GMT)

Created by: Hamish McWilliam

Revision comments:

None

This Workflow only has one version.

Reviews (0)

No reviews yet

Be the first to review!

Comments (0)

View Timeline

No comments yet

Log in to make a comment
