Workflow Entry: NCBI_QBLAST

Created at: 07/06/08 @ 15:05:00 Last updated: 07/06/08 @ 17:11:36

Version 2 (latest) (of 2)

Version created on: 07/06/08 @ 15:05:00 by: Hamish McWilliam | Revision comments Expand

Last edited on: 07/06/08 @ 17:11:36 by: Hamish McWilliam

Title: NCBI_QBLAST

Type: Taverna 1

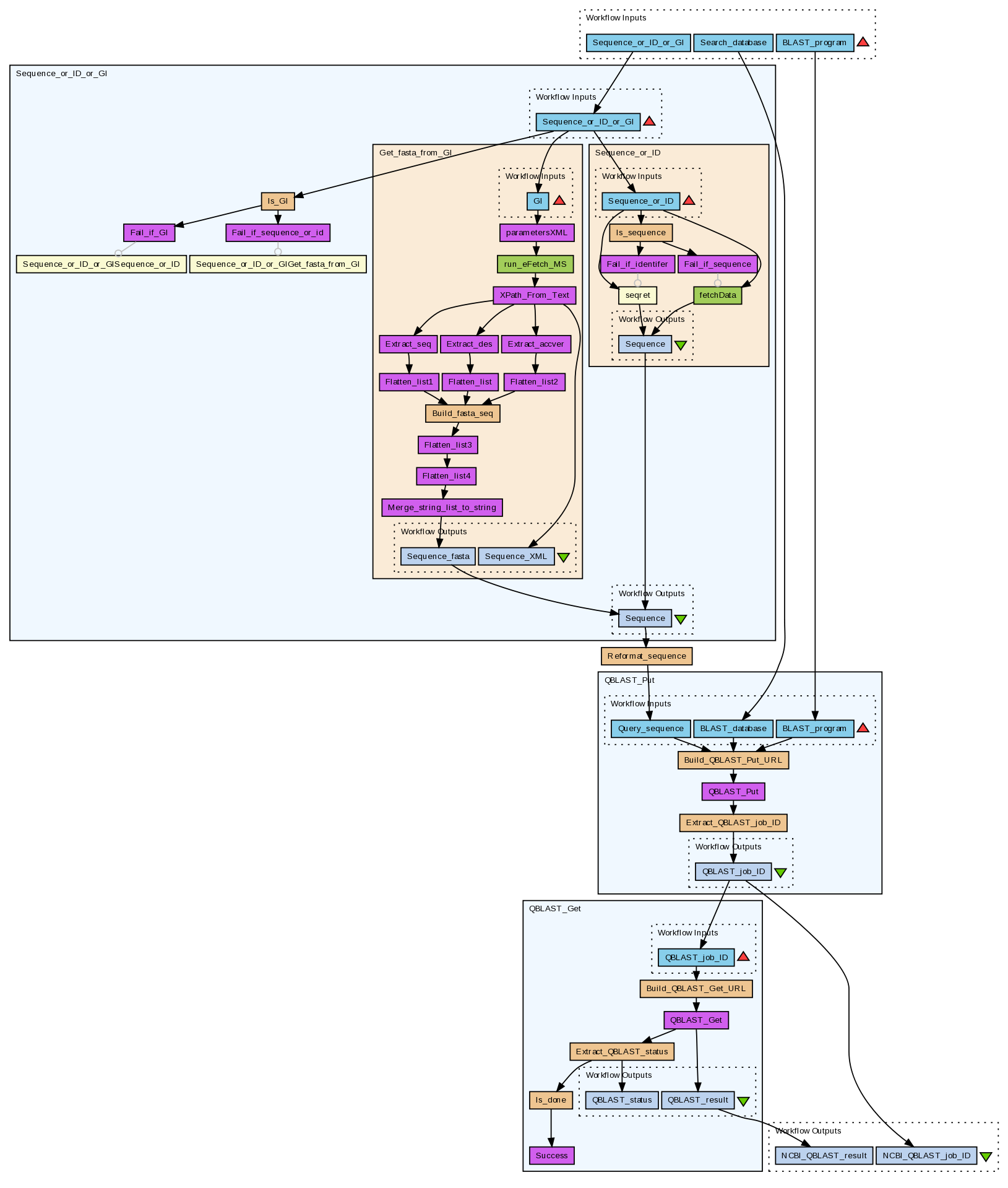

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

Perform an NCBI BLAST sequence similarity search using NCBI's QBLAST service (see http://www.ncbi.nlm.nih.gov/BLAST/Doc/urlapi.html). The query sequence, database to search and BLAST program to use are inputs, the other parameters for the search are allowed to default.

Download

Download Workflow File/Package (SCUFL)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Launch in Taverna

Note: you need to have both the WHIP Launcher and the Taverna myExperiment/WHIP plugin installed on your machine for this to work. See here for information.

Option 2:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/231/download?version=2
[ More Info Expand ]

Workflow Components

Inputs (3)

Name	Description
Sequence_or_ID_or_GI	Input sequence. Either the actual sequence, an NCBI GI identifer (e.g. 75251068 or 1531757) or an entry identifier in database:identifer format (e.g. uniprot:AUX1_ARATH or embl:X98772).
Search_database	Database to search (e.g. nr or nt).
BLAST_program	NCBI BLAST "program" to use for the search (e.g. blastp or blastn).

Processors (4)

Name	Type	Description
QBLAST_Put	workflow	Submit the QBLAST job.
QBLAST_Get	workflow	Check if the QBLAST job has finished, and get results.
Sequence_or_ID_or_GI	workflow
Reformat_sequence	beanshell

Beanshells (9)

Name	Description	Inputs	Outputs
Build_QBLAST_Put_URL	Build QBLAST put URL.	program database query_sequence	put_url
Extract_QBLAST_job_ID	Extract the QBLAST job identifer from the response.	qblast_output	job_id
Extract_QBLAST_status	Extract the job status from the QBLAST output.	qblast_output	qblast_status
Build_QBLAST_Get_URL	Build the URL to get the job status/results	job_id	get_url
Is_done	Map the job status into true/false.	job_status	is_done
Build_fasta_seq		accver des seq	fasta_seq
Is_sequence	Return true if the input is a sequence or false if the input is a sequence identifer (e.g. uniprot:wap_rat).	sequence	is_sequence
Is_GI	Is the input a GI number?	gi_id_seq	is_gi
Reformat_sequence		in_seq	out_seq

Outputs (2)

Name	Description
NCBI_QBLAST_job_ID	NCBI QBLAST job identifer.
NCBI_QBLAST_result	NCBI BLAST result from QBLAST. This is similar to the normal NCBI BLAST output but contains some HTML/XML tags.

Links (8)

Source	Sink
BLAST_program	QBLAST_Put:BLAST_program
Search_database	QBLAST_Put:BLAST_database
QBLAST_Put:QBLAST_job_ID	QBLAST_Get:QBLAST_job_ID
Sequence_or_ID_or_GI	Sequence_or_ID_or_GI:Sequence_or_ID_or_GI
Reformat_sequence:out_seq	QBLAST_Put:Query_sequence
Sequence_or_ID_or_GI:Sequence	Reformat_sequence:in_seq
QBLAST_Get:QBLAST_result	NCBI_QBLAST_result
QBLAST_Put:QBLAST_job_ID	NCBI_QBLAST_job_ID

Coordinations (0)

Information Workflow Type

Taverna 1

Information Original Uploader

Hamish McWilliam

Information License

All versions of this Workflow are licensed under:

Information Credits (1)

(People/Groups)

Hamish McWilliam

Information Attributions (0)

(Workflows/Files)

None

Information Tags (5)

Original Uploader tags

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (1)

Private pack

Log in to add to one of your Packs

Information Ratings (0)

Current:

0.0 / 5

(0 ratings)

Log in to rate and see breakdown of ratings

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

693 viewings

1527 downloads

[ see breakdown ]

Citations (0)

None

Version History

Earliest Version:
[1] - NCBI_QBLAST

Created on: Saturday 07 June 2008 @ 15:05:00 (GMT)

Created by: Hamish McWilliam

Revision comments:

None

Latest Version:
[2] - NCBI_QBLAST

Created on: Saturday 07 June 2008 @ 15:05:00 (GMT)

Created by: Hamish McWilliam

Last edited on: Saturday 07 June 2008 @ 17:11:36 (GMT)

Last edited by: Hamish McWilliam

Revision comments:

Add support for getting the query sequence from an NCBI GI number or an entry identifier in database:identifier format. Also reformat the sequence before attempting to put it in the QBLAST Put URL.
