Workflow Entry: Example of explicit looping

Created at: 15/11/11 @ 10:45:45 Last updated: 15/11/11 @ 10:45:47

Version 1 (of 1)

Version created on: 15/11/11 @ 10:45:45 by: Alan Williams | Revision comments Expand

Title: Example of explicit looping

Type: Taverna 2

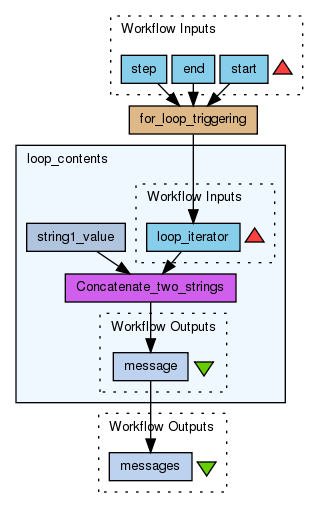

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

This workflow demonstrates how a nested workflow can be called an explicit number of times. Note that the loop iterator does not need to be used in the logic of the loop contents. It can be used as a sentinel (see the conditional workflow)

Download

Download Workflow File/Package (T2FLOW)

Download Workflow as a Galaxy tool

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/2562/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Inputs (3)

Name	Description
start	The start of the loop
end	The end value for the loop creation
step	The step used in the loop creation

Processors (2)

Name	Type	Description
for_loop_triggering	beanshell
loop_contents	workflow

Beanshells (1)

Name	Description	Inputs	Outputs
for_loop_triggering		start end step	trigger_list

Outputs (1)

Name	Description
messages

Datalinks (5)

Source	Sink
step	for_loop_triggering:step
end	for_loop_triggering:end
start	for_loop_triggering:start
for_loop_triggering:trigger_list	loop_contents:loop_iterator
loop_contents:message	messages
