Workflow Entry: Pathways and Gene annotations for QTL region

Created at: 20/11/09 @ 14:04:37 Last updated: 20/11/09 @ 14:04:39

Version 2 (latest) (of 2)

Version created on: 20/11/09 @ 14:04:37 by: Paul Fisher | Revision comments Expand

Title: Pathways and Gene annotations for QTL region

Type: Taverna 1

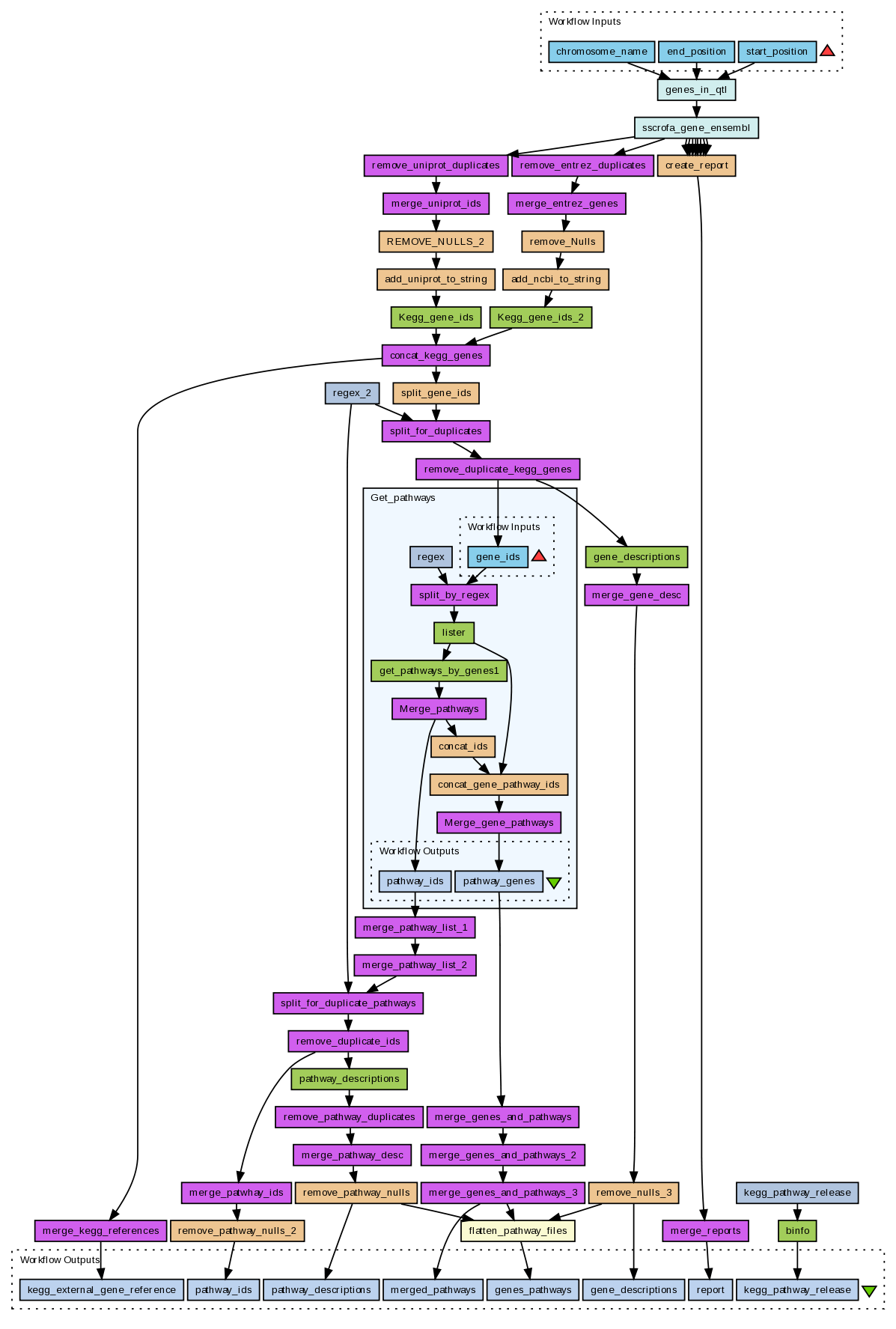

Preview

(Click on the image to get the full size)

Download Scalable Diagram (SVG)

Description

This workflow searches for genes which reside in a QTL (Quantitative Trait Loci) region in the Pig, Sus scrofa. The workflow requires an input of: a chromosome name or number; a QTL start base pair position; QTL end base pair position. Data is then extracted from BioMart to annotate each of the genes found in this region. The Entrez and UniProt identifiers are then sent to KEGG to obtain KEGG gene identifiers. The KEGG gene identifiers are then used to searcg for pathways in the KEGG pathway database.

Download

Download Workflow File/Package (SCUFL)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Launch in Taverna

Note: you need to have both the WHIP Launcher and the Taverna myExperiment/WHIP plugin installed on your machine for this to work. See here for information.

Option 2:

Copy and paste this link into File > 'Open workflow location...'
http://www.myexperiment.org/workflows/931/download?version=2
[ More Info Expand ]

Workflow Components

Inputs (3)

Name	Description
chromosome_name
start_position
end_position

Processors (40)

Name	Type	Description
regex_2	stringconstant
kegg_pathway_release	stringconstant
remove_uniprot_duplicates	local
merge_genes_and_pathways	local
remove_pathway_duplicates	local
remove_duplicate_ids	local
merge_reports	local
remove_duplicate_kegg_genes	local
remove_entrez_duplicates	local
merge_pathway_desc	local
merge_genes_and_pathways_2	local
merge_patwhay_ids	local
merge_genes_and_pathways_3	local
merge_kegg_references	local
merge_pathway_list_1	local
split_for_duplicate_pathways	local
merge_gene_desc	local
merge_uniprot_ids	local
merge_pathway_list_2	local
merge_entrez_genes	local
concat_kegg_genes	local
split_for_duplicates	local
remove_nulls_3	beanshell
add_uniprot_to_string	beanshell
remove_Nulls	beanshell
split_gene_ids	beanshell
remove_pathway_nulls_2	beanshell
add_ncbi_to_string	beanshell
remove_pathway_nulls	beanshell
REMOVE_NULLS_2	beanshell
flatten_pathway_files	soaplabwsdl	This service flattens a list of KEGG output files to provide a list of KEGG pathways names and their associated gene names
create_report	beanshell
pathway_descriptions	arbitrarywsdl	See the Service entry for this web service.
gene_descriptions	arbitrarywsdl	See the Service entry for this web service.
Kegg_gene_ids	arbitrarywsdl	See the Service entry for this web service.
binfo	arbitrarywsdl	See the Service entry for this web service.
Kegg_gene_ids_2	arbitrarywsdl	See the Service entry for this web service.
Get_pathways	workflow	This workflow removes any null values from a list of strings
genes_in_qtl	biomart	Sus scrofa genes (Sscrofa9)
sscrofa_gene_ensembl	biomart	Sus scrofa genes (Sscrofa9)

Beanshells (11)

Name	Inputs	Outputs
concat_gene_pathway_ids	pathway_ids gene_id	output
concat_ids	input	output
remove_nulls_3	input	output
add_uniprot_to_string	input	output
remove_Nulls	input	output
split_gene_ids	input	output
remove_pathway_nulls_2	input	output
add_ncbi_to_string	input	output
remove_pathway_nulls	input	output
REMOVE_NULLS_2	input	output
create_report	ensemblGene_Id entrezGeneId externalGeneId chromoName geneStart geneEnd ensemblTranscriptId uniprotAcc	result

Outputs (8)

Name	Description
merged_pathways
gene_descriptions
pathway_descriptions
kegg_pathway_release
report
kegg_external_gene_reference
pathway_ids
genes_pathways

Links (60)

Source	Sink
Get_pathways:pathway_genes	merge_genes_and_pathways:stringlist
Get_pathways:pathway_ids	merge_pathway_list_1:stringlist
Kegg_gene_ids:return	concat_kegg_genes:string1
Kegg_gene_ids_2:return	concat_kegg_genes:string2
REMOVE_NULLS_2:output	add_uniprot_to_string:input
add_ncbi_to_string:output	Kegg_gene_ids_2:string
add_uniprot_to_string:output	Kegg_gene_ids:string
chromosome_name	genes_in_qtl:sscrofa_gene_ensembl.chromosome_name_filter
concat_kegg_genes:output	merge_kegg_references:stringlist
concat_kegg_genes:output	split_gene_ids:input
create_report:result	merge_reports:stringlist
end_position	genes_in_qtl:sscrofa_gene_ensembl.end_filter
gene_descriptions:return	merge_gene_desc:stringlist
genes_in_qtl:sscrofa_gene_ensembl.ensembl_gene_id	sscrofa_gene_ensembl:sscrofa_gene_ensembl.ensembl_gene_id_filter
kegg_pathway_release:value	binfo:db
merge_entrez_genes:concatenated	remove_Nulls:input
merge_gene_desc:concatenated	remove_nulls_3:input
merge_genes_and_pathways:concatenated	merge_genes_and_pathways_2:stringlist
merge_genes_and_pathways_2:concatenated	merge_genes_and_pathways_3:stringlist
merge_genes_and_pathways_3:concatenated	flatten_pathway_files:merged_pathways_direct_data
merge_pathway_desc:concatenated	remove_pathway_nulls:input
merge_pathway_list_1:concatenated	merge_pathway_list_2:stringlist
merge_pathway_list_2:concatenated	split_for_duplicate_pathways:string
merge_patwhay_ids:concatenated	remove_pathway_nulls_2:input
merge_uniprot_ids:concatenated	REMOVE_NULLS_2:input
pathway_descriptions:return	remove_pathway_duplicates:stringlist
regex_2:value	split_for_duplicate_pathways:regex
regex_2:value	split_for_duplicates:regex
remove_Nulls:output	add_ncbi_to_string:input
remove_duplicate_ids:strippedlist	merge_patwhay_ids:stringlist
remove_duplicate_ids:strippedlist	pathway_descriptions:string
remove_duplicate_kegg_genes:strippedlist	Get_pathways:gene_ids
remove_duplicate_kegg_genes:strippedlist	gene_descriptions:string
start_position	genes_in_qtl:sscrofa_gene_ensembl.start_filter
sscrofa_gene_ensembl:sscrofa_gene_ensembl.chromosome_name	create_report:chromoName
sscrofa_gene_ensembl:sscrofa_gene_ensembl.end_position	create_report:geneEnd
sscrofa_gene_ensembl:sscrofa_gene_ensembl.ensembl_gene_id	create_report:ensemblGene_Id
sscrofa_gene_ensembl:sscrofa_gene_ensembl.ensembl_transcript_id	create_report:ensemblTranscriptId
sscrofa_gene_ensembl:sscrofa_gene_ensembl.entrezgene	create_report:entrezGeneId
sscrofa_gene_ensembl:sscrofa_gene_ensembl.entrezgene	remove_entrez_duplicates:stringlist
sscrofa_gene_ensembl:sscrofa_gene_ensembl.external_gene_id	create_report:externalGeneId
sscrofa_gene_ensembl:sscrofa_gene_ensembl.start_position	create_report:geneStart
sscrofa_gene_ensembl:sscrofa_gene_ensembl.uniprot_swissprot_accession	create_report:uniprotAcc
sscrofa_gene_ensembl:sscrofa_gene_ensembl.uniprot_swissprot_accession	remove_uniprot_duplicates:stringlist
binfo:return	kegg_pathway_release
flatten_pathway_files:output	genes_pathways
merge_genes_and_pathways_3:concatenated	merged_pathways
merge_kegg_references:concatenated	kegg_external_gene_reference
merge_reports:concatenated	report
remove_entrez_duplicates:strippedlist	merge_entrez_genes:stringlist
remove_nulls_3:output	flatten_pathway_files:gene_descriptions_direct_data
remove_nulls_3:output	gene_descriptions
remove_pathway_duplicates:strippedlist	merge_pathway_desc:stringlist
remove_pathway_nulls:output	flatten_pathway_files:pathway_descriptions_direct_data
remove_pathway_nulls:output	pathway_descriptions
remove_pathway_nulls_2:output	pathway_ids
remove_uniprot_duplicates:strippedlist	merge_uniprot_ids:stringlist
split_for_duplicate_pathways:split	remove_duplicate_ids:stringlist
split_for_duplicates:split	remove_duplicate_kegg_genes:stringlist
split_gene_ids:output	split_for_duplicates:string

Coordinations (0)

Information Workflow Type

Taverna 1

Information Original Uploader

Paul Fisher

Information License

All versions of this Workflow are licensed under:

Information Credits (1)

(People/Groups)

Paul Fisher

Information Attributions (1)

(Workflows/Files)

Pathways and Gene annotations for QTL region

Information Tags (28)

Original Uploader tags

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Ratings (0)

Current:

0.0 / 5

(0 ratings)

Log in to rate and see breakdown of ratings

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

1086 viewings

667 downloads

[ see breakdown ]

Citations (0)

None

Version History

Earliest Version:
[1] - Pathways and Gene annotations for QTL Phenotype

Created on: Monday 19 October 2009 @ 12:39:05 (GMT)

Created by: Paul Fisher

Revision comments:

None

Latest Version:
[2] - Pathways and Gene annotations for QTL region

Created on: Friday 20 November 2009 @ 14:04:37 (GMT)

Created by: Paul Fisher

Revision comments:

* Removed Ensembl database release service - no version present for Pig at present

* Fixed workflow output duplicates and errors from iterations
